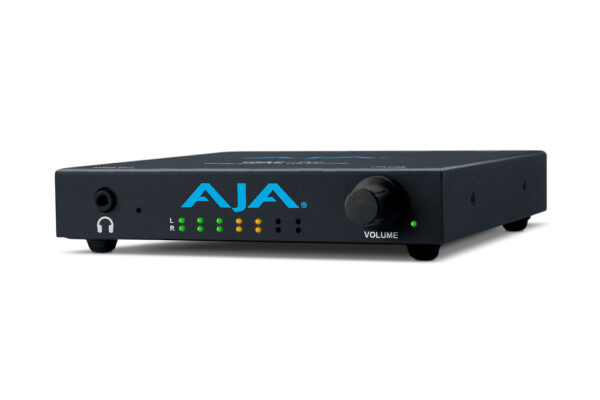

T-TAP Pro is the newest generation of AJA’s proven T-TAP, featuring the latest 12G-SDI and HDMI 2.0 connectivity for working with up to 4K or UltraHD 60p video over a single cable. This allows for easy output of deep color, high frame rate, SDR and HDR video to a wide range of pro and consumer monitors and devices, all at the highest 10- and 12-bit quality. T-TAP Pro is a compact, silent device that delivers next generation mobile monitoring capabilities to any supported Thunderbolt 3 enabled system.
Learn how T-TAP Pro is the perfect fit across multiple production scenarios, including on-set, remote, in an editing bay, at a live event or wherever you and your team need high-quality and reliable video output that offers next generation workflow compatibility.
Desktop Software v16.1 and above is optimized for the new Apple M1 chip with native support for AJA macOS drivers, application plug-ins, AJA Control Room, AJA Control Panel, AJA System Test and AJA NMOS software.
AJA’s T-TAP Pro provides video professionals with an inexpensive, extremely compact device that utilizes the power of Thunderbolt 3 to deliver high-quality 10- and 12-bit up to UltraHD or 4K 60p video and embedded audio output from any compatible Mac or PC.
T-TAP Pro directly supports HDR dependent monitoring workflows across a number of HDR formats, including HLG (Hybrid Log Gamma), PQ and HDR10, with support for Dolby Vision possible via additional third party application integration.
AJA’s Desktop software v16 now offers HDR over SDI with VPID signaling of SDR and HDR characteristics. A new HDR Tab in AJA Control Panel, now signals HDR over both SDI and HDMI simultaneously.
For playback, AJA Control Room reads HDR metadata embedded in .mov files and uses that to auto-set Control Panel to signal HDR accordingly, simplifying the workflow chain.
With T-TAP Pro and the appropriately captured/rendered HDR files, AJA Control Room can automatically detect the HDR format and T-TAP Pro can automatically adjust it’s output accordingly via both 12G-SDI or HDMI.
AJA Control Room
Avid & Adobe Plugins
Simple to set up and use, T-TAP Pro’s Thunderbolt 3 port easily connects to a wide range of Apple and Windows laptops and desktops, providing instant professional video and audio output from your favorite creative application.
Thunderbolt 3 is ubiquitous across both Mac and Windows computers, and supports the massive bandwidth needed for professional 4K video, audio, data and more.
T-TAP Pro features 12G-SDI and HDMI 2.0 outputs. The SDI output can be used to feed professional monitors or recording gear, while the HDMI output is able to feed directly into consumer HDMI monitors. Both HDMI and SDI are active at all times, so you can simultaneously work with professional and consumer monitors.
Note: High Frame Rate and 4K/UltraHD capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates and raster sizes.• Operating Altitude: <3,000 meters (<10,000 feet)
*Bit depth support is application dependent. Check with your software manufacturer for compatibility.
Note: HDR support is application dependent. Check with your software manufacturer for compatibility.
