Features

• 2 independent Fiber RX channels (1260nm – 1620nm)
• 2 Independent Fiber TX channels
• 2 channels selectable between optical or electrical inputs
• CWDM support, select from 18 wavelengths
• Supports SDI/ASI/DVB and SMPTE 310 up to 3Gbit/s
• Reclocking or non-reclocking mode for each channel
• Auto-detects input clock rate
• Transparently pass data between 15Mbit/s and 3Gbit/s in non-reclocked mode.
• Input presence detection with LED indication for each channel
• Internal 4×4 router for flexible I/O mapping (remote only)

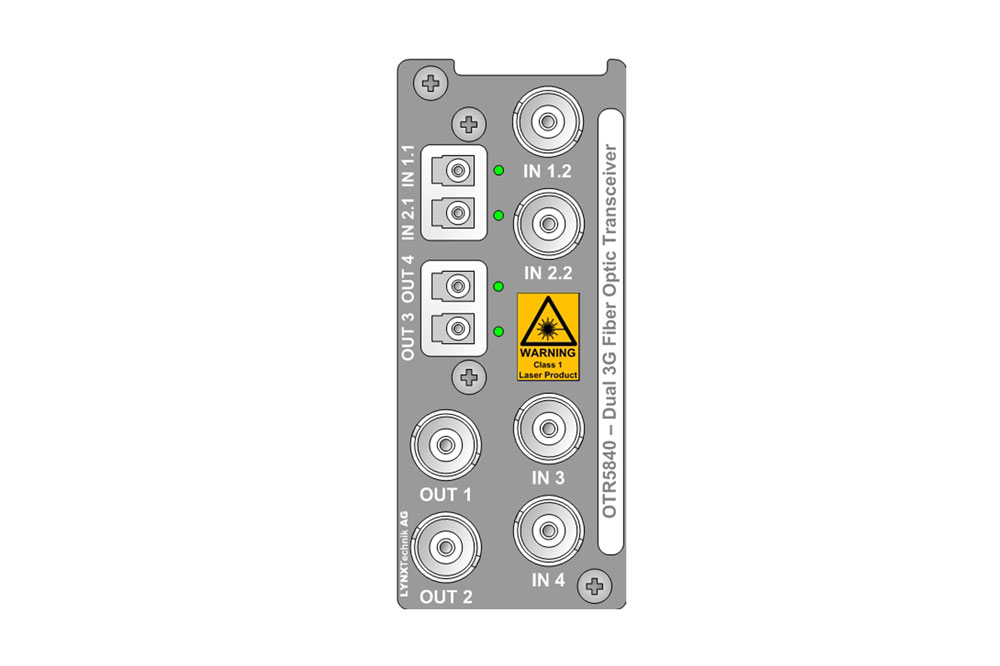

• LC fiber connections, single mode or multimode fiber
• Fiber SFP modules secured in backplane. Module can be removed without disconnecting fiber cables
• Remote control, status monitoring and error reporting when used with LYNX control system
• SNMP error reporting when used with master controller option
• Hot Swappable

Description

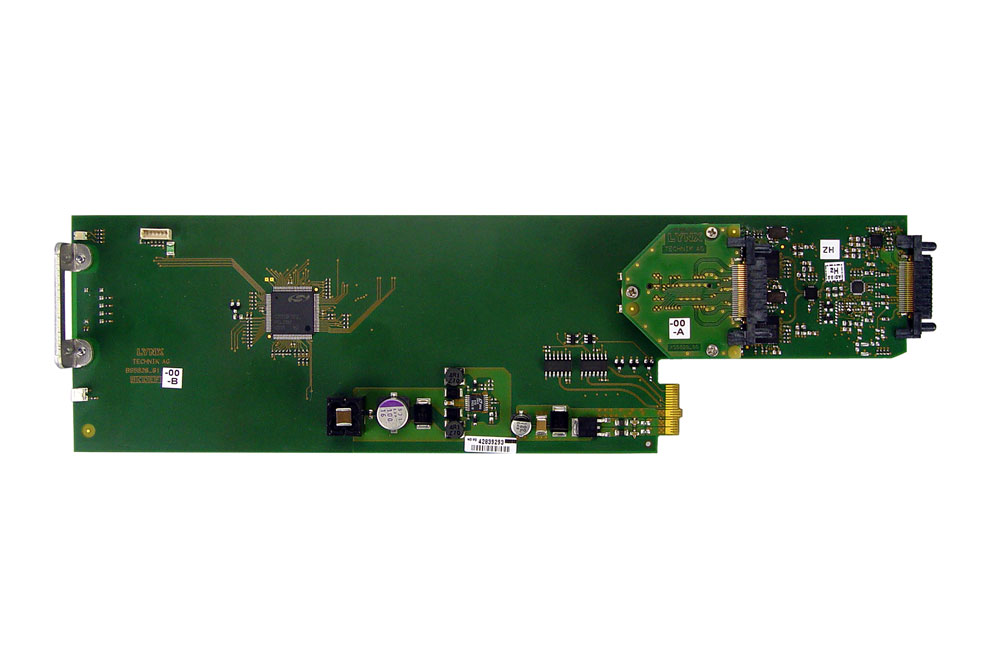

The OTR 5840 is a flexible dual channel SDI electrical to optical transceiver suitable for SDI/ASI-DVB video signals up to 3Gbit/s. Each channel has automatic input clock rate and signal presence detection with selectable signal reclocking. This module is ideally suited for demanding digital multi-format broadcast and professional applications.

Two input channels can be switched between optical or electrical inputs. In non-reclocked mode the module will transparently pass any data between 15Mbit/s and 3Gbit/s. Support for ASI/DVB and SMPTE 310 signals is also provided.

Select from 18 transmitter wavelengths for CWDM applications, or select dual 1310nm transmitter wavelengths for non CWDM applications.

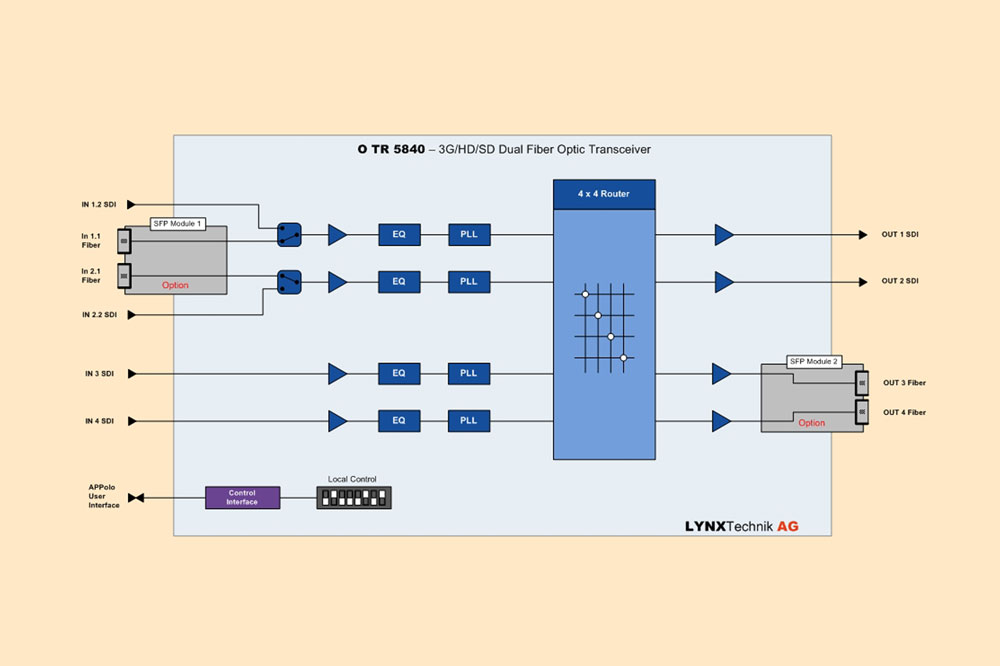

An integral 4×4 signal router can be utilized to change 1/O channel mapping when using the LYNX control system.

Up to 10 modules (or 20 fiber RX and 20 TX channels) can be supported in a standard LYNX 2RU rack frame. The Fiber SFP sub-modules are secured on the backplane allowing for module removal and hot swapping without removing any modules rear I/O fiber connections.

NOTE: This module has advanced features and the use of APPolo control system is recommended. If installed in a RFR 5012 chassis please make sure a rack controller (RCT 5023 G) is installed in the rack.
