Features

• Optical receiver and transmitter in single package
• Supports SDI video up to 3Gbit/s (1080p60)
• 3G Level A and Level B support (all formats)
• Auto reclocking 270M / 1.5G / 3G
• CWDM with 18 wavelength selections
• Error free optical connections
• Up to 40km (24.8 miles) @ 3Gbit/s
• Duplex LC/PC single mode optical connections
• Supports hot swapping and hot plugging

Description

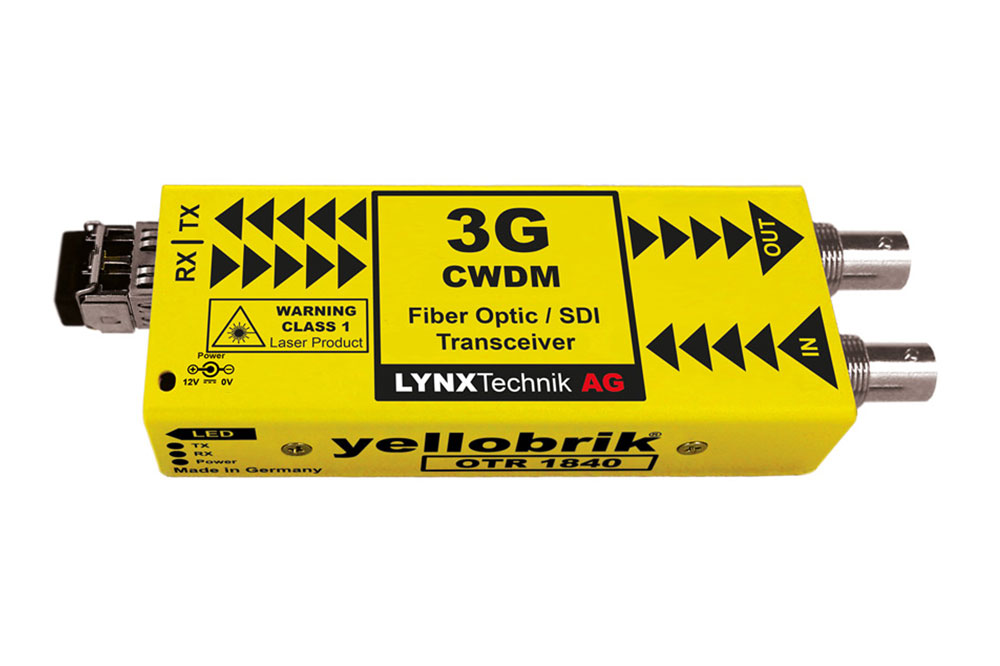

The OTR 1840-1 is a CWDM Fiber Optic to SDI transmitter and receiver combined in a compact self contained package. It is a convenient and cost effective solution to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.

Each OTR 1840-1 CWDM tranceiver has an independant transmitter and receiver channel, which provides an effective solution for any SDI signal up to 1080p60 (3Gbit/s) while preserving full uncompressed quality. Select from 18 transmitter wavelengths for full CWDM compatibility (ITU-T G.694.2).

The OTR 1840-1 will auto-detect and re-clock any 270Mbit/s, 1.5Gbit/s and 3Gbit/s SDI source prior to conversion. The module is fully compatible with 3G Level A and Level B formats.

This yellobrik had a major hardware update. If your yellobrik has no usb port on it’s length side please visit the yellobrik documents in our downloads section for the datasheet and quick reference.
