Features

• Supports 12G, 6G, 3G and 1.5G SDI video standards
• 3Gbit Level A and Level B (support for all formats)
• Auto reclocking 1.5Gbit / 3Gbit / 6Gbit / 12Gbit
• Error free optical transmission
• Two reclocked SDI outputs
• LC/PC and ST connection variants
• Singlemode fiber connection
• Input range 1260nm to 1620nm
• Hot swappable and hot pluggable

Description

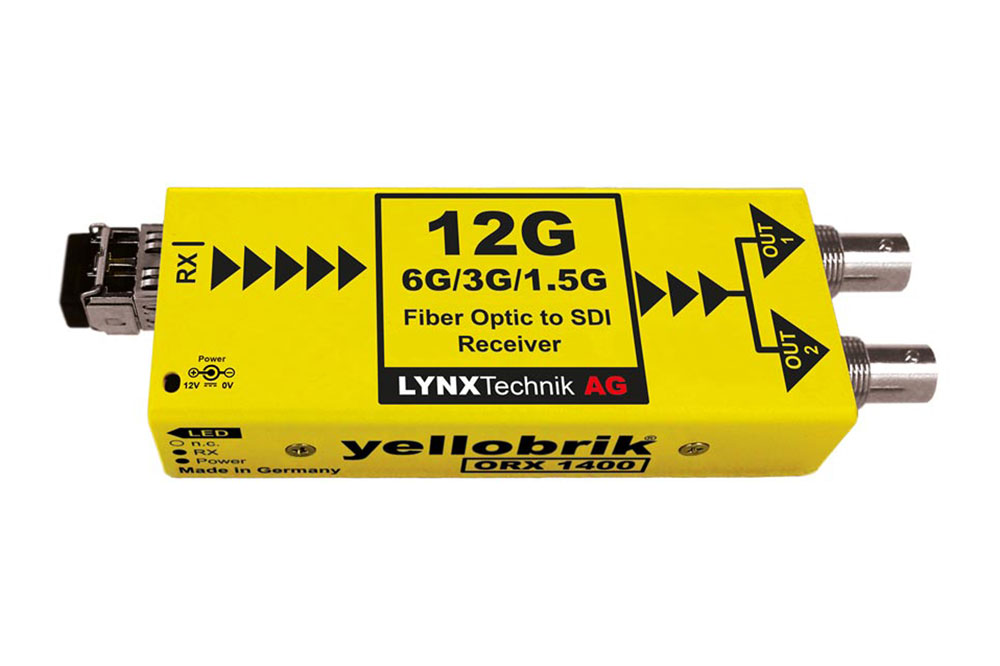

The ORX 1400 is a compact SDI to fiber optic Receiver designed to combat the restrictions involved with the distribution of uncompressed, high bandwidth, broadcast quality video signals over long distances. When paired with the fiber optic to SDI transmitter (e.g. yellobrik OTX 1410) you have a very cost-effective optical transmission / receiver system for signals up to 12Gbit/s (4096×2160 @ 60Hz), while preserving full uncompressed quality.

Operation of the ORX 1400 is fully automatic. The SDI video format is automatically detected, reclocked and provided on two SDI output connections.

The ORX 1400 supports 12G, 6G, 3G and 1.5G SDI video standards.

This yellobrik had a major hardware update. If your yellobrik has no usb port on it’s length side please visit the yellobrik documents in our downloads section for the datasheet and quick reference.
