Features

• Dual channel
• Supports 12G, 6G, 3G, and 1.5G SDI video standards
• Supports SDI video inputs up to 12Gbit/s (4096×2160 @ 60Hz)
• Auto reclocking 1.5Gbit / 3Gbit / 6Gbit / 12Gbit
• 3Gbit Level A and Level B (support for all formats)
• Error free optical reception
• 1260nm to 1620nm wavelength input range
• Up to 10km (6.2 miles) @ 12Gbit/s (singlemode)
• 2x fiber optic inputs (LC Connector – singlemode)
• Supports hot swapping and hot plugging

Description

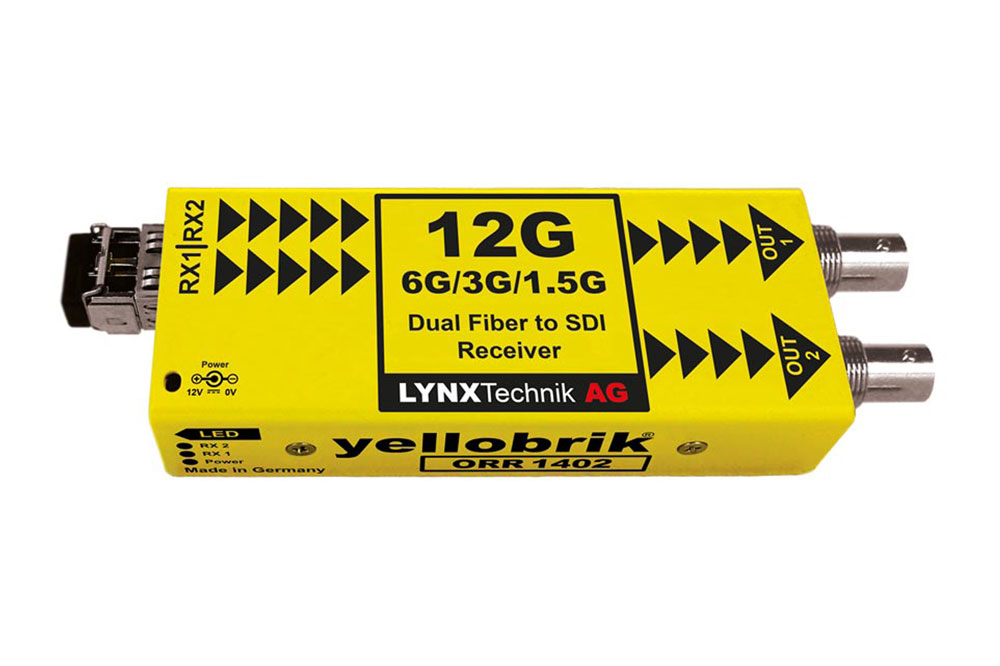

The ORR 1402 is a compact dual channel fiber optical to SDI receiver designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.

When paired with a SDI optical transmitter (e.g. yellobrik OTT 1412, OTX 1410, OTX 1440 etc), the user will have a very cost-effective optical transmission/ receiver system for signals up to 12Gbit/s (4096×2160 @ 60Hz), while preserving full uncompressed quality.

The ORR 1402 has two completely independent channels and each will autodetect and re-clock any 1.5G, 3G, 6G, or 12G SDI fiber source prior to electrical conversion. The module is fully compatible with 3G Level A and Level B formats.

This yellobrik had a major hardware update. If your yellobrik has no usb port on it’s length side please visit the yellobrik documents in our downloads section for the datasheet and quick reference.
