DVI to SDI with Region of Interest Scaling, DashBoard Support

Ursprünglicher Preis war: 1.345,85 CHFAktueller Preis ist: 942,09 CHF.

Ab Lager, lieferbar in 1 – 2 Arbeitstagen (Noch 1 Stück verfügbar)

Overview

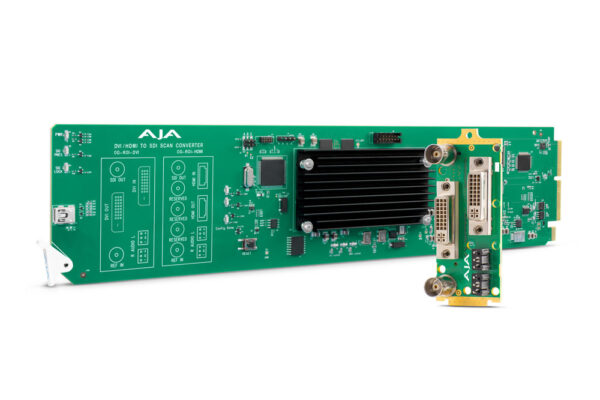

AJA’s OG-ROI-DVI is an openGear card that allows exceptionally high-quality conversion of computer and DVI signals to 3G-SDI baseband video. With incredible region-of-interest image scaling as well as aspect and frame rate conversion, OG-ROI-DVI fulfills the growing need to properly incorporate computer signals into the video world without sacrificing budget or space.



Features

  • Scan Converter
  • DVI input with loop through
  • 3G-SDI output
  • Supports SD, HD, and 3G formats (see Tech Specs for complete list)
  • Region of Interest scaling
  • Up, down, cross-conversion
  • Aspect ratio conversion
  • Frame rate conversion
  • Image H/V flip and 90 degree rotation
  • Supports 8 channels of embedded audio
  • 2-channel embedding of balanced analog audio inputs or 2-channel or 8-channel of HDMI audio, when using a HDMI to DVI adaptor (2x 3-Pin Terminal Block connectors included)
  • Sync reference selection (External, openGear frame, or Free-run)
  • Remote control over Ethernet using DashBoard network control software
  • Hot-swappable
  • Compatible with DFR-8321, OG3 and OGX openGear frames
  • Five year warranty





Video Input Formats

  • Computer Signals:
    • WUXGA (1920 x 1200) 60 Hz max
    • VGA (640 x 480) minimum
  • Video Signals:
    • (HD) 1920 x 1080i 50, 59.94
    • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1280 x 720p 50, 59.94, 60
    • (SD) 625i, 525i
    • (SD) 580p, 480p



Note: Frame rates limited by the 166 mHz max pixel rate of the DVI receiver.

Video Output Formats

  • (HD) 1920 x 1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1 (4:2:2 10-bit YCbCr)
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60
  • (SD) 625i 25
  • (SD) 525i 29.97

Color Range

  • Full
  • SMPTE

Reference Source

  • Free Run
  • Card Ext Ref
  • OG Frame Ref 1
  • OG Frame Ref 2

Reference Input

  • Supported reference video inputs include:
    • 1080i tri-level sync
    • 1080p tri-level sync
    • 720p tri-level sync
    • 625i Color Black
    • 525i Color Black
  • 75 ohm terminating

Video Input

  • 1x DVI input connector (with embedded audio, up to 8-channels)

Video Outputs

  • DVI
    • 1x HDMI loop through connector (with embedded audio, up to 8-channels)
  • SDI
    • 3G-SDI, SMPTE-259/292/424, 1x BNC

Audio Inputs

  • 2-channel balanced analog audio inputs, 2x 3-pin terminal blocks connectors

Audio Output

  • SDI embedded audio, 24-bit, 2-channel or 8-channel

User Interface

  • openGear DashBoard network control software via Windows, macOS or Linux

Size (w x d x h)

  • openGear standard form factor, front slot and rear card. Two slots required for each card

Weight

  • 0.5 lb (0.3 kg)

Power

  • openGear frame compatible, 12.0 watts max per card

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
SKU AJD-3062 Kategorien , , , , , , , , , ,
