OG-FIDO-TR, Demo

OG-FIDO-TR, Demo

1-Channel 3G-SDI/LC Single Mode LC Fiber Transceiver, DashBoard Support

Ursprünglicher Preis war: 881,02 CHFAktueller Preis ist: 616,71 CHF.

Ab Lager, lieferbar in 1 – 2 Arbeitstagen (Noch 1 Stück verfügbar)

Overview

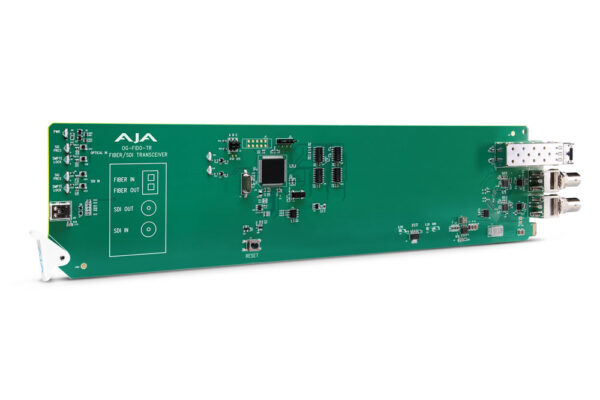

The OG-FiDO-TR is a state of the art, openGear compatible 3G-SDI/Fiber transceiver. Both 3G-SDI to Fiber and Fiber to 3G-SDI conversions are supported.

openGear cards offer unmatched flexibility and cost efficiency for 3G-SDI-Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) for single mode.

Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.



Features

  • Video Formats: 150 Mbps – 3 Gbps, format agnostic
  • Inputs: 1x 3G-SDI BNC; 1x Single Mode LC Fiber
  • Outputs: 1x 3G-SDI BNC; 1x Single Mode LC Fiber
  • Monitor via openGear DashBoard
  • Input Present and Input SMPTE Lock LEDs
  • Automatic detection and reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select
  • Nominal Wavelength: 1260-1620 nm
  • Power: 2.5 watts
  • Hot swap capable
  • Compatible with OGX, OG3 and DFR-8321 openGear frames







Video Formats

  • 150 Mbps – 3 Gbps, format agnostic

Video Input Digital

  • 1-Channel independent 3G-SDI BNC Input, SMPTE-259/292/424
  • 1-Channel Single Mode LC Fiber Input, SMPTE-297
  • Nominal Wavelength: 1260-1620 nm
  • Optical Sensitivity: -18dBm (min)
  • Overload Power: -3dBm (min)

Video Output Digital

  • 1-Channel independent 3G-SDI BNC Output, SMPTE-259/292/424
  • 1-Channel Single Mode LC Fiber Output, SMPTE-297
  • Nominal Wavelength: 1310 nm
  • Optical Power: -5dBm (min), 0dBm (max)
  • Extinction Ratio: 7.5dB (Typ)

Reclocking

  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select
  • All other rates are passed through and not reclocked

User Interface

  • openGear DashBoard network control software via Windows, macOS or Linux

Size (w x d x h)

  • openGear standard form factor, front slot and rear card. Two slots required for each card.

Weight

  • 0.5 lb (0.3 kg)

Power

  • openGear frame compatible, 2.5 watts max per card

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
