Features

• Supports SDI video up to 12Gbit/s (2160p60)
• 3Gbit Level A and Level B support (all formats)
• Auto reclocking 1.5Gbit / 3Gbit / 6Gbit / 12Gbit
• Bidirectional – send and receive on single fiber
• Error free optical connections
• Up to 10km (6.2 miles) @ 12Gbit/s
• Simplex LC/PC singlemode fiber connection
• Supports hot swapping and hot plugging

Description

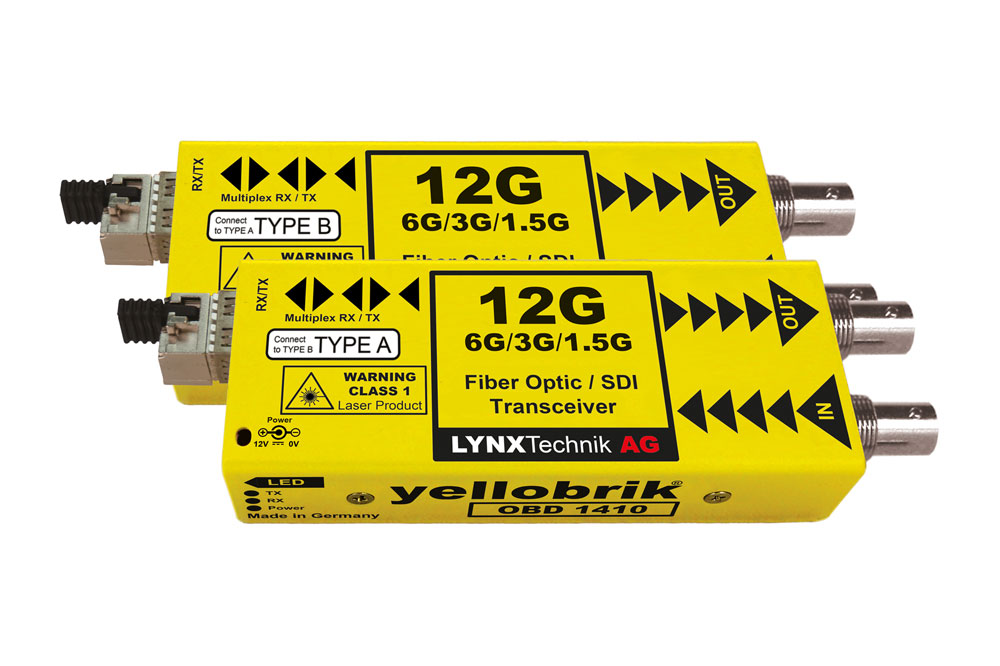

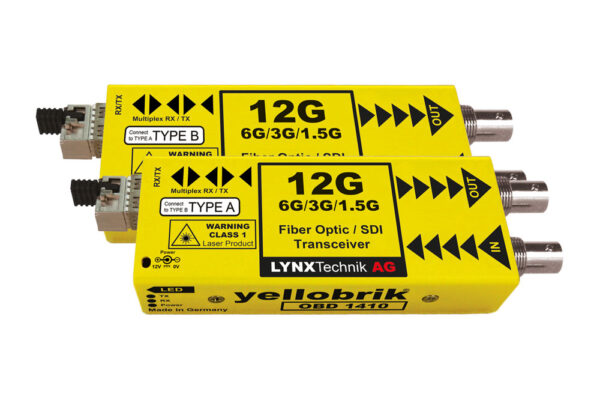

The OBD 1410 is a bidirectional Fiber Optic to SDI transmitter and receiver which uses a single fiber link supplied in a compact self contained package. It is a convenient and cost-effective solution to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.The OBD 1410 modules are supplied in pairs, one Type A and one Type B which work together in a WDM closed loop application. Each module has an electrical SDI in and SDI out connection and uses a single fiber link between the two. Each channel is fully independent and can have different standards and formats of SDI video. The modules auto-detect and re-clock any 1.5Gbit, 3Gbit, 6Gbit or 12Gbit SDI source prior to conversion. The modules are fully compatible with 3Gbit Level A and Level B formats.

Note: This system used WDM optical multiplexing and should only be used in point to point applications. This solution cannot be integrated into a CWDM multiplexed system.

This yellobrik had a major hardware update. If your yellobrik has no usb port on it’s length side please visit the yellobrik documents in our downloads section for the datasheet and quick reference.
