LDX C96 Compact
– Supports 1080i, 720p, and 1080p formats
– Optionally supports 1080PsF formats
– Optionally supports 3-speed HD/3G formats
– Optionally supports 6-speed HD formats
– No optional support of 6-speed 3G formats
– No optional support of UHD supports
37.985,26 CHF
Vorbestellung, Lieferbar gem. Absprache
The LDX C96 offers two software-enabled feature sets: high framerate with 3X HD/3G cameras or high framerate with 6X HD. This advanced multiformat and multispeed content acquisition system is combined with outstanding image performance, excellent light sensitivity and the ability to use standard HD lenses.
Power: Approx. 45W (typical, depends on operational mode)
Temperature range: -20° to 45°C (-4° to 113°F) (operating)
Water protection: Compliant to IPX0
Weight: approx. 2.5 kg (5.1 lbs.)
Dimensions (approx.):
Pick-up device: 3×2/3” Xensium-FT CMOS with global shutter operation
Picture elements:
Smear: no vertical smear
Shutter: no mechanical shutter
Optical system: F1.4 prism
Lens mount: 2/3” Bayonet type
Optical filter wheels: 2x motorized wheels
Optical filters on first wheel: clear, 1/4 ND, 1/16 ND, 1/64 ND
Optical filters on second wheel: clear, 4P-star, soft focus
Electronic color correction: 3200°K, 5600°K, 7500°K, FL, 2 AWB presets, Var, continuous auto white
Exposure: electronic exposure down to 1/1000 sec (depending on video mode)
S/N ratio: 62 dB typical
Aspect ratio: 16:9
Modulation depth: 60% (typical) at 800 TV lines (27 MHz) in 1080i50/59.94 & 720p50/59.94 modes
Digital resolution: Floating point A/D conversion with 16-bit performance and with 34-bit processing in RGB
Horizontal resolution: >1,000 TV lines
Gain selection: -6 dB to 18 dB in 3 dB steps (user-definable presets) or continuous master gain

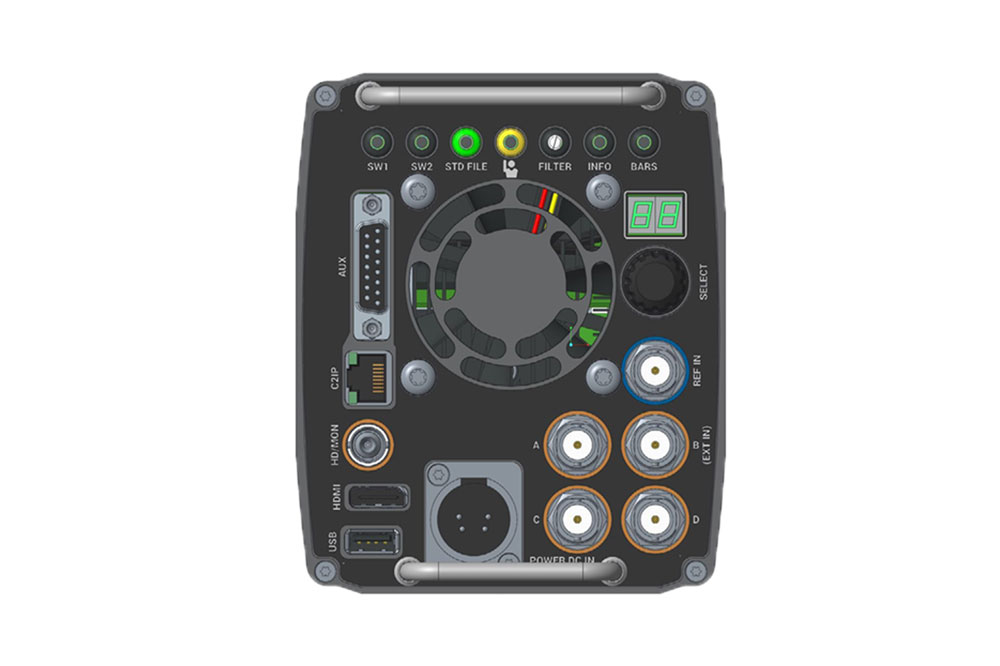

Lens iris connector: 12-pin female Hirose (front)
Lens zoom/focus connector: 12-pin male Hirose (front)
USB: GV-eLicense, scene files, service
HDMI: viewing
Ethernet RJ-45: C2IP camera control
Tally control/RS-232/RS-422/Private data:
D-connector – 15- pin
4x HD/3G SDI outputs: BNC 0.8 Vp-p, 75Ω, SMPTE ST 292, 424/425
HD-SDI monitoring video output: BNC 0.8 Vp-p, 75Ω, SMPTE ST 292, 424/425
Genlock input: BNC CVBS/BB/tri-level
Power input: XLR-4 male (10.5-17 VDC)
PickMe
Menu control: menu select, rotary control
Color bar button
Info button
Filter wheel selection
Standard file recall
2 user assignable buttons
2 digit display: Power on, camera number
Tally LEDs: On Air; ISO; Call
