KUMO 3232-12G, Demo

KUMO 3232-12G, Demo

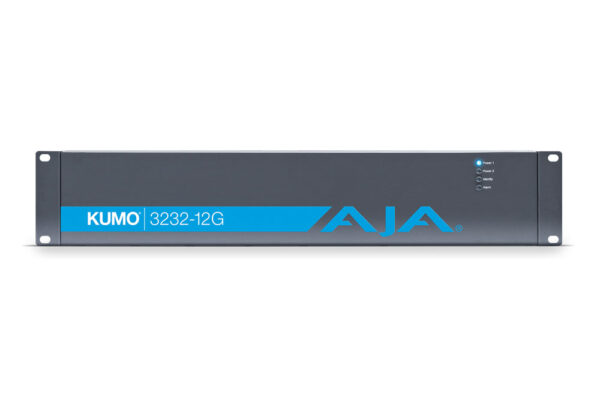

KUMO 32×32 Compact 12G-SDI Router, with 1 power supply

Ursprünglicher Preis war: 5.468,78 CHFAktueller Preis ist: 3.554,71 CHF.

Ab Lager, lieferbar in 1 – 2 Arbeitstagen (Noch 1 Stück verfügbar)

Das könnte dir auch gefallen …

Overview

KUMO 3232-12G offers increased capacity for larger configurations while maintaining a compact 2RU profile with support for 12G-SDI/6G-SDI/3G-SDI/1.5G-SDI with 32x 12G-SDI inputs and 32x 12G-SDI outputs.

KUMO 12G-SDI routers support large format resolutions, high frame rate (HFR) and deep color formats, while reducing cable runs when transporting 4K/UltraHD over SDI. The routers offer network-based and/or physical control, and mirror the physical form of AJA’s production-proven KUMO 3232 and KUMO 1616 routers, with a new USB port for configuring IP addresses via AJA’s eMini-Setup software. Built to the same quality standards as all AJA KUMO products, KUMO 3232-12G is the ideal choice for any situation where a balance of size and capacity are critical such as mid-sized post facilities and mobile trucks.

Features

  • 32x 12G-SDI inputs and outputs
  • Small, portable form factor
  • Single cable support for 4K/UltraHD
  • Redundant power supply option
  • Eight salvos per router
  • Embedded web server for remote control
  • USB port to easily configure the router IP address
  • 5 year warranty



Video Format

  • 270 Mbps, 1.5 Gbps, 3 Gbps, 6 Gbps, 12 Gbps SDI
  • 270 Mbps DVB-ASI
  • Format agnostic, 270 Mbps – 12 Gbps

Video Input Digital

  • 12G-SDI Inputs
  • 32x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

Video Output Digital

  • 12G-SDI Outputs
  • 32x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
  • Noninverting

Ancillary Data

  • Passes all SDI embedded ancillary data including audio

Salvo

  • Up to 8 Salvos can be configured and saved in each KUMO router

Cable Equalization

(Belden 1694A)

  • 12Gbps, up to 50m
  • 6Gbps, up to 100m
  • 3Gbps, up to 170m
  • 1.5Gbps, up to 200m
  • 270Mbps, up to 390m
  • Automatic operation

Reclocking

  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps – Auto Select
  • All other rates are passed through and not reclocked

Switching Modes

  • Single, Dual, and Quad link modes
  • Switches in vertical blanking per SMPTE RP-168

Control Panel Compatibility

  • AJA KUMO CP – 1RU X-Y Ethernet control panel
  • AJA KUMO CP2 – 2RU X-Y Ethernet control panel

Reference Input

  • External, 2x BNC
  • Looping, nonterminating
  • Blackburst or tri-level sync

Network Interface

  • 1x RJ-45, 10/100/1000 Ethernet
  • Supports AJA KUMO Ethernet control panels, direct connect or networked
  • Basic support for Grass Valley Native Protocol
  • Embedded web server for remote control

USB Interface

  • 1x Mini-USB for IP configuration using AJA eMini-Setup

Serial Interface

  • 1x DB-9 Female, RS-422
  • Basic support for Grass Valley Native Protocol
  • 9-pin D-connector pinout is as follows:
1 GND
2 TX-
3 RX
4 GND
5 No Connection
6 GND
7 TX
8 RX-
9 GND
Shell GND



Weight

  • 4.6 lb (2.1 kg)

Size (w x d x h)

  • 2RU – 17.4″ x 1.54″ x 3.50″ (441.96 x 39.12 x 88.9 mm)

Power

  • 10-14VDC regulated, 24W typ, 25.2W max, power supply required, included with purchase
  • AC Adapter: 100-240VAC, 50/60 Hz, universal input

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
