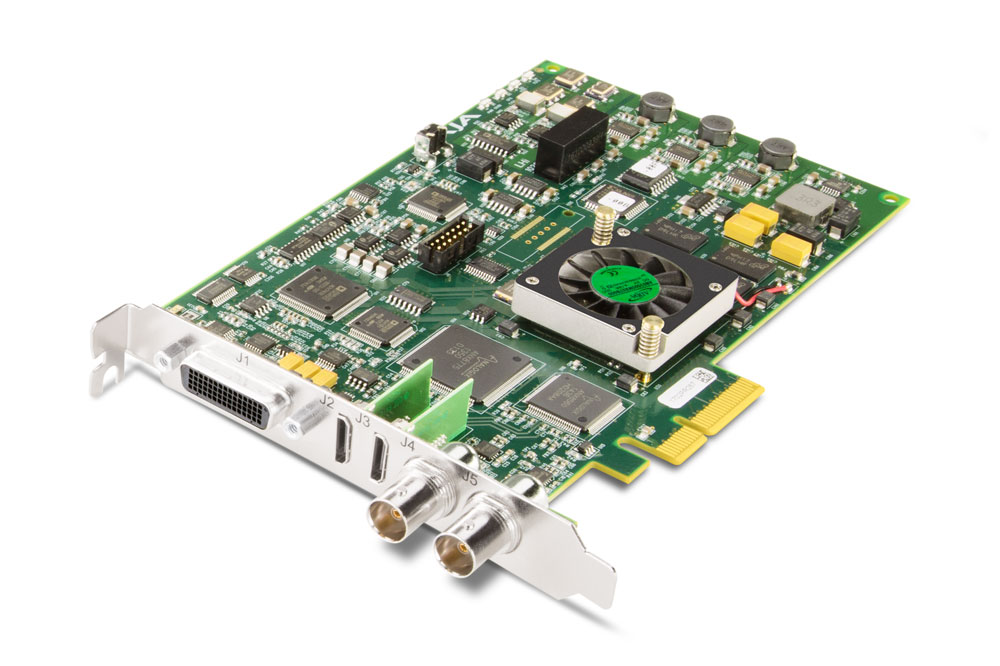

KONA LHi

KONA LHi

HD/SD 10-bit Digital and 12-bit Analog PCIe Card, HDMI Input and Output

2.031,20 CHF

Vorbestellung, Lieferbar gem. Absprache

Overview

The most flexible card for analog and digital Standard and High Definition workflows.

Features

  • 2K/HD/SD up to 50/60p
  • 2x 3G-SDI spigots (In, Out) with 8-channel embedded audio
  • 2x HDMI 1.3 ports (In, Out) with 8-channel embedded audio
  • YCbCr 4:2:2 10-bit and HD HFR workflows supported
  • 10-bit LUT support (.cube)
  • Real time up, down and cross-conversion for HD and SD with pristine 10-bit quality
  • Compatible with leading creative apps
  • Includes support for the new Apple M1 chip
  • Supports AES and Analog Audio I/O for Telecast Wirestream
  • Included breakout cable for Ref (Analog or Tri-level), RS-422, 2-ch AES/EBU, Analog composite or S-video, or SD/HD component
  • Extend external connectivity with KLHi-BOX breakout box
  • Three year warranty

Flexible Workflows

KONA LHi provides a wide variety of formats, frame rates and audio/video sources for the connectivity you need. KONA LHi bridges the gap between analog devices and the latest 3G-SDI and HDMI-enabled products to provide editing, monitoring and mastering of professional quality video in an affordable, powerful, easy to use product.

Video Formats

  • (2K) 2048 x 1080p 23.98, 24, 25
  • (2K) 2048 x 1080PsF 23.98, 24
  • (HD) 1080i 50, 59.94, 60
  • (HD) 1080PsF 23.98, 24
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94

Software Dependent Formats

  • 720p 23.98
  • 525i 23.98



Note: These formats are dependent on specific software functionality and are not normal over the wire formats.

Video Input Digital

  • 3G/SD/HD SDI, SMPTE-259/292/296/424, 8 or 10-bits
  • Single Link 4:2:2 (1x BNC)
  • HDMI v1.3 30-bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD, 1080p 50/60 (1x mini-HDMI)

Video Input Analog

  • Composite/S-Video (Y/C) (1 x BNC/2x BNC Adapter)
  • NTSC, NTSCJ, PAL
  • Component (3 x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit D/A, 8x oversampling
  • /- .2 dB to 5.0 MHz Y Frequency Response
  • /- .2 dB to 1 MHz C Frequency Response
  • .5% 2T pulse response
  • <1% Diff Phase
  • <1% Diff Gain
  • <1 ns Y/C delay inequity

Video Output Digital

  • 3G/SD/HD SDI, SMPTE-259/292/296/424
  • Single Link 4:2:2 or 4:4:4 (1x BNC)
  • HDMI v1.3 30-bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD, 1080p 50/60 (1x mini-HDMI)

Video Output Analog

  • Composite/S-Video (Y/C) (1x BNC/2x BNC Adapter)
  • NTSC, NTSCJ, PAL
  • Component (3x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit D/A, 8x oversampling
  • /- .2 dB to 5.0 MHz Y frequency response
  • /- .2 dB to 1 MHz C frequency response
  • .5% 2T pulse response
  • <1% Diff Phase
  • <1% Diff Gain
  • <1 ns Y/C delay inequity

Audio Input Digital

  • 8-Channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
  • 8-Channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
  • 2-Channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KLHi-Box)

Audio Input Analog

  • 2-Channel, 16 and 24-bit A/D analog audio, 48 kHz sample rate, balanced (via 2x XLR on DB-25 breakout cable or optional KLHi-Box)
  • 24 dBu full scale digital
  • /- 0.2 dB 20 Hz to 20 kHz frequency response

Audio Output Digital

  • 8-Channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
  • 8-Channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
  • 2-Channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KLHi-Box)

Audio Output Analog

  • 2-Channel, 16 and 24-bit D/A analog audio, 48 kHz sample rate, balanced (via 2x XLR on DB-25 breakout cable or optional KLHi-Box)
  • 24 dBu full scale digital (0 dBFS)
  • /- 0.2 dB 20 Hz to 20 kHz frequency response
  • 2-Channel unbalanced output (via 2x RCA jacks on optional KLHi-Box)

Up-Conversion

  • Hardware 10-bit
  • Anamorphic: fullscreen
  • Pillarbox 4:3: results in a 4:3 image in center of screen with black sidebars
  • Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
  • Zoom Letterbox: results in image zoomed to fill fullscreen
  • Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change

Down-Conversion

  • Hardware 10-bit
  • Anamorphic: fullscreen
  • Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
  • Crop: image is cropped to fit new screen size

Cross-Conversion

  • Hardware 10-bit
  • 1080i to 720p
  • 720p to 1080i
  • 720p to 1080PsF

SD to SD Aspect Ratio Conversion

  • Letterbox: This transforms SD anamorphic material to a letterboxed image
  • H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame
  • SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
  • V Crop: Will transform SD letterbox material to an anamorphic image

Reference Input

  • Analog Color Black (1V) or Composite Sync (2 or 4V)
  • Looping
  • 75 ohm on optional KLHi-Box, terminated on supplied breakout cable

Electrical Interface

  • 4-lane PCIe 1.0

Machine Control

  • RS-422, Sony 9-pin protocol (via DB-25 breakout cable or optional KLHi-Box)
  • 9-pin D-connector pinout is as follows:
1 GND
2 RX-
3 TX
4 GND
5 No Connection
6 GND
7 RX
8 TX-
9 GND
Shell GND

Size (w x d x h)

  • 0.75″ x 8.25″ x 5.0″ (19.05 x 209.55 x 127.00 mm)

Weight

  • 0.7 lb (0.4 kg)

Power

  • 13W typical, 15W maximum

Envrionment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
