KONA HDMI, Demo

KONA HDMI, Demo

4-Channel HDMI Capture 1x 4K/UltraHD or 4x 2K/HD PCIe 2.0 card

Ursprünglicher Preis war: 1.782,57 CHFAktueller Preis ist: 1.069,54 CHF.

Ab Lager, lieferbar in 1 – 2 Arbeitstagen (Noch 1 Stück verfügbar)

Overview

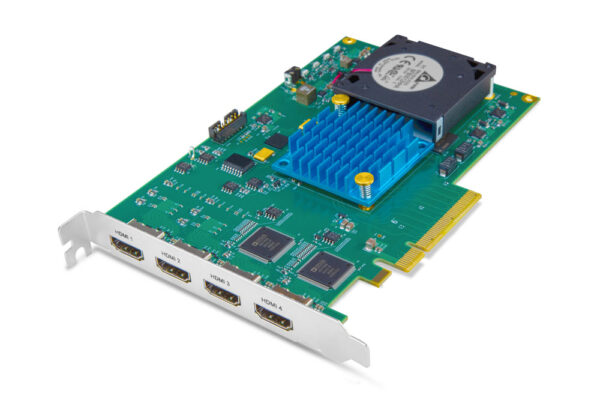

KONA HDMI is an 8-lane PCIe 2.0 multi-channel HDMI capture card, with all of the quality and flexibility you have come to expect from AJA.

Designed for the demands of multiple workflows such as gaming, streaming, VJ-ing, live events switching, vlogging, VR, post and broadcast, this powerful card boasts support for single channel capture up to 4K/UltraHD 60p or four channel capture up to 2K/HD 60p.

KONA HDMI is also supported by both the AJA SDK as well as Video for Linux®, making it a perfect choice for developers of multichannel HDMI ingest, switching, monitoring and communication solutions.



Features

  • 4x full size HDMI inputs
  • 4-Channels of 2K/HD HDMI Capture
  • 2-Channels of 4K/UltraHD up to 60p over HDMI 2.0
  • Embedded HDMI audio up to eight channels per input
  • Streaming/Switching compatibility with Telestream® Wirecast®, vMix® and more
  • AJA Control Room™ capture support for NLE, Color Correction or VFX
  • Three year warranty
  • Developer friendly: Use V4L2 or AJA’s own powerful SDK



Video Formats

  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080PsF 23.98, 24, 25
  • (HD) 1080i 50, 59.94, 60
  • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94

Video Input Digital

  • Dual or single stream 4K/UltraHD** with HFR support up to 60p, 4:2:2, 10-bit
    • HDMI 2.0, port 1 and 2
    • 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
  • Quad, triple, dual or single stream 2K/HD/SD** with HFR support up to 60p, 4:2:2, 10-bit
    • 30/36-bits/pixel, RGB or YUV, 2.25 Gbps
  • Mixed stream** supporting 1x 4K/UltraHD and 2x 2K/HD/SD with HFR support up to 60p, 4:2:2, 10-bit
    • 4K/UltraHD via port 1 only
      • 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
    • 2x 2K/HD via any other ports
      • 30/36-bits/pixel, RGB or YUV, 2.25 Gbps



*Using AJA Control Room, industry standard NLEs, or appropriate third party switching/capture software

**Using appropriate third party capture or switching software

Audio Input Digital

  • 8-channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous per HDMI Input
  • Single stream input supports up to 8-channels
  • Quad stream input supports up to 32-channels

Electrical Interface

  • 8-lane PCIe 2.0

Size (w x d x h)

  • 0.75″ x 6.5″ x 5.0″ (19.05 x 165.1 x 127.00 mm)

Weight

  • 0.3 lb (0.2 kg)

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
SKU AJD-1936 Kategorien , , , , , , , ,
