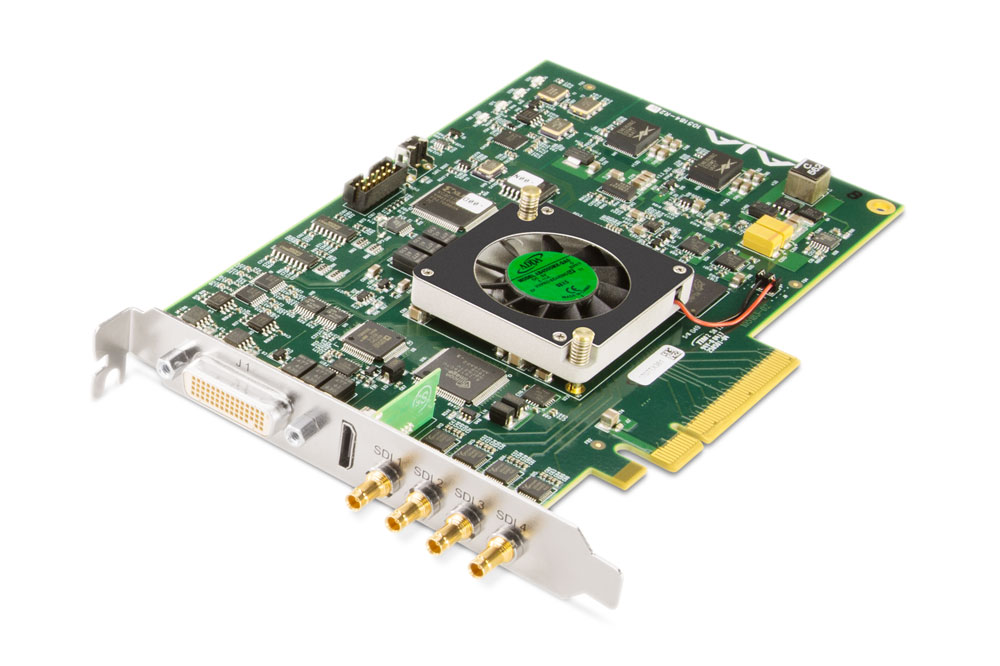

• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• (2K) 2048 x 1080PsF 23.98, 24, 25
• (HD) 1080i 50, 59.94, 60
• (HD) 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 720p 23.98*, 24*, 25*, 29.97*, 30*, 50, 59.94, 60
• (SD) 625i 50
• (SD) 525i 23.98*, 59.94

*These formats are dependent on specific software functionality and are not normal over the wire formats.

• 3G-SDI, SMPTE-259/292/296/424/425, 8-bit, 10-bit and 12-bit*
• 4K/UltraHD 4:2:2 and 4:4:4 up to 50/60 fps
• Dual Link HD 4:4:4 (2x BNC)
• Single Link 4:2:2 or 4:4:4 (1x BNC)
• 1D LUT support

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.

• 3G-SDI, SMPTE-259/292/296/424, 8-bit, 10-bit and 12-bit*
• 4K/UltraHD 4:2:2 and 4:4:4 up to 50/60 fps
• Dual Link HD 4:4:4, (2x BNC)
• Single Link 4:2:2 or 4:4:4 (1x BNC)
• HDMI v1.4b
• 30/36-bits/pixel, RGB or YUV, 2.25 Gbps
• 2K, HD, and SD, UltraHD with HFR support up to 60p 4:2:0
• HDR10 Support – HDR Infoframe metadata, in accordance with HDMI 2.0a/CTA-861.3
• HLG Support – in accordance with HDMI 2.0b/CTA-861-G**

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.
**HLG support is application dependent. Check with your software manufacturer for compatibility.

• Composite/S-Video (Y/C) (1x BNC/2 x BNC adapter)
• NTSC, NTSCJ, PAL
• Component (3x BNC)
• HD: YPbPr, RGB
• SD: YPbPr, RGB (component mode)
• SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
• 12-bit D/A, 8x oversampling
• /- .2 dB to 5.0 MHz Y frequency response
• /- .2 dB to 1 MHz C frequency response
• 5% 2T pulse response
• <1% Diff Phase
• <1% Diff Gain
• <1% ns Y/C delay inequity

• 16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
• 16-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous (via 8x BNC on optional K3G-Box)
• 8-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)

• 16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous
• 16-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous (via 8x BNC on optional K3G-Box)
• 8-channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
• 8-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)

• Supports graphics up to 2K/HD with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte

• Letterbox: This transforms SD anamorphic material to a letterboxed image
• H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame
• SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
• V Crop: Will transform SD letterbox material to an anamorphic image

• LTC timecode input and output (via 1x BNC each)

• Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V) (via breakout cable or optional K3G-Box)
• Reference input is terminated into 75 ohms when Genlock is set to Ref In on optional K3G-Box, also terminated on supplied breakout cable.

• 8-lane PCIe 2.0

• RS-422, Sony 9-pin protocol (via breakout cable or optional K3G-Box)
• 9-pin D-connector pinout is as follows:

• 0.75″ x 6.9″ x 5.0″ (19.05 x 175.26 x 127.00 mm)

• 0.7 lb (0.4 kg)

• 22W typical, 24W maximum

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
