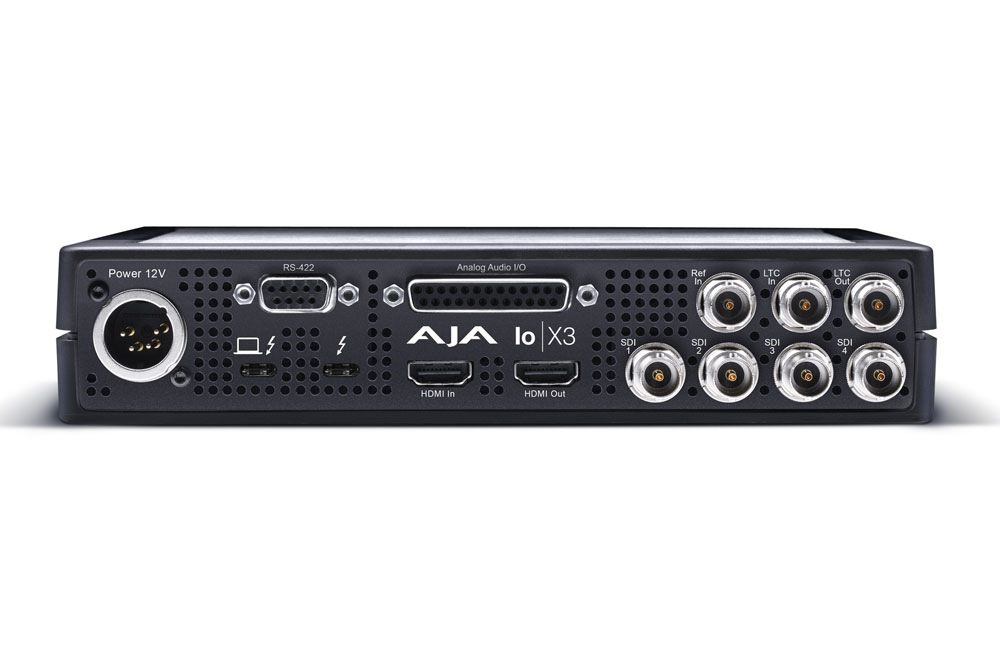

Io X3 – Bild 2

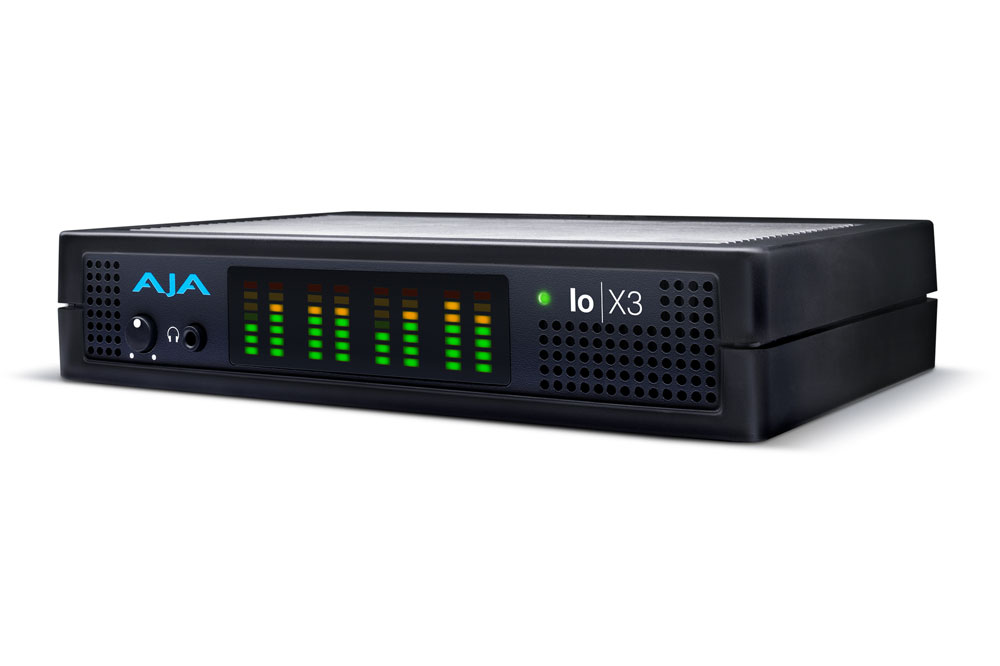

Io X3

2K/HD/SD 3G-SDI and HDMI Video I/O over Thunderbolt 3

1.901,48 CHF

Vorbestellung, Lieferbar gem. Absprache

Overview

AJA Io X3 is perfect for high quality HDR or SDR video work with up to 60p HD/2K signals or files with support for all major NLE applications as well as other video applications such as OBS Studio, vMix and Telestream Wirecast. Connecting with a single Thunderbolt 3 cable and providing a second Thunderbolt connector for flexibility, Io X3’s compact and quiet form factor is ideal for on set, in the studio, at an event or in the edit suite.

Features

  • 2K/HD/SD I/O up to 50/60p
  • 4x bidirectional 3G-SDI BNC with 16-channel embedded audio
  • HDMI I/O with 8-channel embedded audio
  • Two Thunderbolt 3 ports with loop through
  • Multi-channel workflow support for OBS/Wirecast/vMix and other applications
  • YCbCr 4:2:2 10-bit up to 60p
  • RGB 4:4:4 12-bit up to 30p
  • VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
  • PQ, HLG, HDR10, HDR10 and Dolby Vision Support
  • HDR Metadata Capture and Auto Playback Detection
  • Multiview output over HDMI, to view up to 4-channels on one screen
  • Analog audio flexibility with a choice of 8-channel In or 8-channel Out or 4-channel In and 4-channel out via a standard Tascam connection
  • Front panel audio display
  • Includes support for the Apple M1 chip and the latest OS versions
  • XLR 12V power for battery or AC use (AC adapter included)
  • Headphone jack and level control for mobile and live environments
  • RS-422 VTR control, Reference, LTC Input and LTC Output

Video Formats

  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (2K) 2048 x 1080PsF 23.98, 24, 25
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1080i 50, 59.94, 60
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94



Note: High Frame Rate support is dependent on Thunderbolt speed and system performance. Not all host systems will support all frame rates.

Video Input Digital

  • 3G-SDI, SMPTE 425
    • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
  • 1.5G-SDI, SMPTE 292M
    • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
    • YCbCr 4:2:2 10-bit, 8-bit
  • HDMI v1.4b
    • 30/36-bits/pixel, RGB or YUV, 2.25 Gbps
    • 2K, HD, and SD



*Bit depth support is application dependent. Check with your software manufacturer for compatibility.

Video Output Digital

  • 3G-SDI, SMPTE 425
    • RGB 4:4:4 12-bit*, YCbCr 4:2:2 10-bit
  • 1.5G-SDI, SMPTE 292M
    • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
    • YCbCr 4:2:2 10-bit, 8-bit
  • HDMI v1.4b
    • 30/36-bits/pixel, RGB or YUV, 2.25 Gbps
    • 2K, HD, and SD with HFR support up to 60p (4:2:2), 10-bit



*Bit depth support is application dependent. Check with your software manufacturer for compatibility.

HDR

  • SDI: VPID signaling for SDR/HDR Transfer Characteristics
  • HDMI: HDR10 Support – HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
  • HDMI: HLG Support – compatible with HDMI 2.0b/CTA-861-G



Note: HDR support is application dependent. Check with your software manufacturer for compatibility.

Audio Input Digital

  • 16-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
  • 8-channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous

Audio Output Digital

  • 16-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
  • 8-channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous

Audio Input Analog

  • 8-channel, 24 and 16-bit D/A analog audio, 48 kHz sample rate, balanced, using industry standard 8x XLR on DB-25 breakout cable (cable not included)
  • 24 dBu full scale digital (0 dBFS)
  • /- 0.2 dB 20 to 20 kHz frequency response
  • Input supported across Ch 1-8, Ch 1-4, or Ch 5-8 depending on configuration chosen

Audio Output Analog

  • 8-channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced, using industry standard 8x XLR on DB-25 breakout cable (cable not included)
  • 24 dBu full scale digital (0 dBFS)
  • /- 0.2 dB 20 to 20 kHz frequency response
  • Output supported across Ch 1-8, Ch 1-4, or Ch 5-8 depending on configuration chosen
  • 2-channel, 18-bit D/A analog audio, 48 kHz sample rate, unbalanced, using standard 3.5mm jack
    • 1.2V RMS full scale digital output level (0 dBFS)

Downstream Keyer

  • Supports graphics up to 2K/HD with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte



LTC

  • 1x BNC LTC input (dedicated)
  • 1x BNC LTC output (dedicated)

Reference

  • 1x BNC (dedicated)
  • Analog Color Black (1V) or Composite Sync (2 or 4V)
  • Nonterminating

Electrical Interface

  • Thunderbolt 3 (2x)

Machine Control

  • RS-422, Sony 9-pin protocol
  • 9-pin D-connector pinout is as follows:
1 GND
2 RX-
3 TX
4 GND
5 No Connection
6 GND
7 RX
8 TX-
9 GND
Shell GND

Size (w x d x h)

  • 8.74″ x 7.09″ x 1.65″ (222.0 x 180.09 x 41.91 mm)

Weight

  • 3.1 lbs. (1.5 kg)

Power

  • 10-20V, 23W typical, 28W max

Environment

  • Safe Operating Temperature Range: 0 to 35 C (32 to 95 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
