Hi5-Fiber

Hi5-Fiber

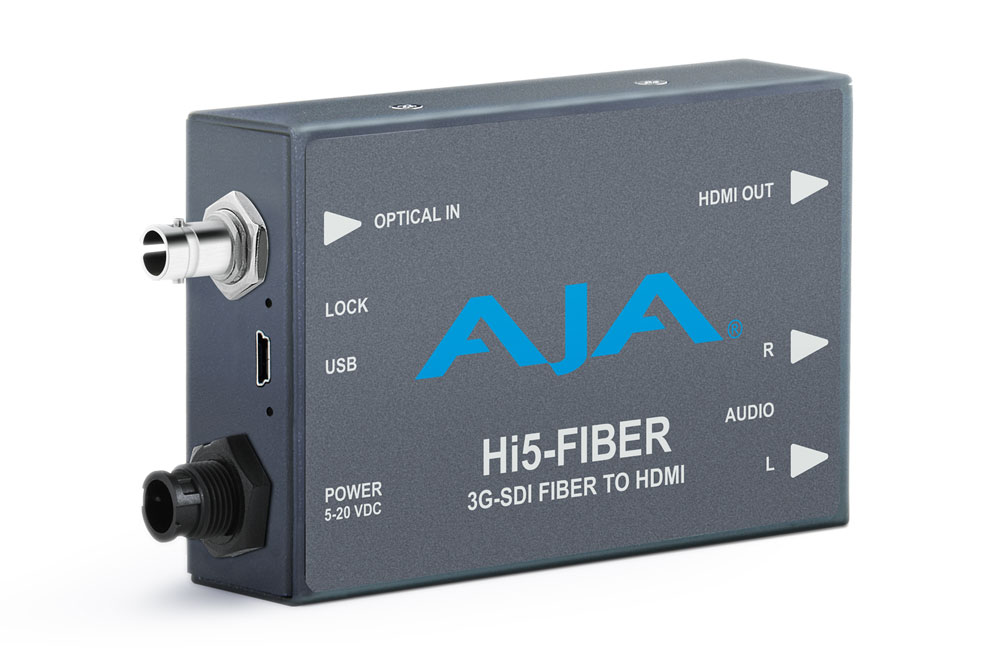

Hi5 with ST Fiber Input (3G-SDI Protocol on Fiber) for Fiber to HDMI Conversion

950,20 CHF

Vorbestellung, Lieferbar gem. Absprache

Overview

Hi5-Fiber converts 3G-SDI over single mode 1310 nm Fiber optic cable (ST-style Fiber connector) to HDMI for driving HDMI monitors. Embedded 8-channel 3G-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. Hi5-Fiber provides 2-Channel RCA style audio outputs for separate audio monitoring if needed.

Features

  • Fiber optic 3G-SDI to HDMI
  • Supports single mode 1310 nm fiber optic cable with ST receiver
  • Full HDMI support including embedded audio
  • Additional 2-Channel RCA jack audio output
  • No configuration necessary
  • 1m HDMI cable included
  • Five year warranty



Video Formats

  • (2K) 2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2K x 1080PsF* 23.98, 24, 25, 29.97, 30
  • (HD) 1080i 50, 59.94, 60
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1080PsF* 23.98, 24, 25, 29.97, 30
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i
  • (SD) 525i



*NOTE: converts to progressive

Video Input

  • Single mode optical fiber, ST connector supporting SMPTE-259/292/424 3G/HD/SD-SDI

Video Outputs

  • HDMI with embedded audio up to 8-Channels (selectable by Mini-Config)
    • 12-bit
    • 10-bit YCbCr 4:2:2
    • 8-bit RGB 4:4:4

Audio Input

  • SDI embedded audio, select from 16-Channels

Audio Output

• 2-Channel RCA style (-10 dBu nominal)

Size (w x d x h)

  • 4.6″ x 2.4″ x 1.0″ (116.84 x 60.96 x 25.4 mm)

Weight

  • 0.4 lb (0.2 kg)

Power

  • Universal power supply included
  • 100-240V, 50/60 Hz universal input
  • +5V DC regulated, 3 watts

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
SKU AJ-1025 Kategorien ,
