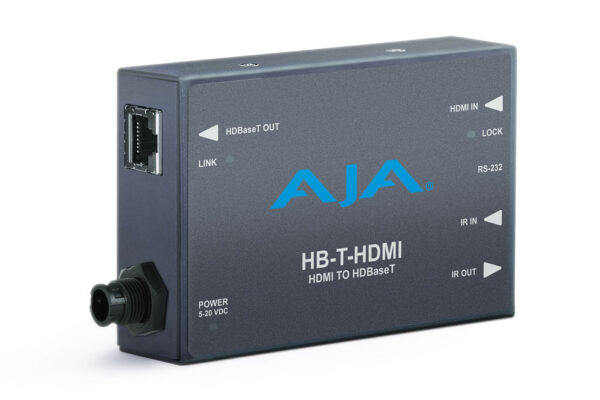

HB-T-HDMI, Demo

HB-T-HDMI, Demo

HDMI to HDBaseT

Ursprünglicher Preis war: 485,37 CHFAktueller Preis ist: 242,68 CHF.

Ab Lager, lieferbar in 1 – 2 Arbeitstagen (Noch 1 Stück verfügbar)

Video Formats

  • (4K) 4096 x 2160P 50, 59.94, 60 (8-bit 4:2:0)
  • (4K) 4096 x 2160P 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840 x 2160P 50, 59.94, 60 (8-bit 4:2:0)
  • (UltraHD) 3840 x 2160P 23.98, 24, 25, 29.97, 30
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1080p 23.98, 24, 25, 29.97, 50, 59.94, 60
  • (HD) 1080i 25, 29.97
  • (HD) 720p 25, 29.97, 50, 59.94, 60
  • (SD) 625i
  • (SD) 525i

Note: Wide range of VESA formats supported for pass through see associated chart on VESA formats

Video Input

  •  HDMI 1.4b

Video Output

  • HDBaseT (RJ-45)
  • CAT 5e 70m (230 ft) or CAT 6a 100m (328 ft)
  • 4K/UltraHD signals require Cat 6a to achieve 100m cable run (HD signals can run the full 100m on Category 5e cable)

Video Displays

  • HDBaseT Cable Run Performance for 4K/UltraHD/HD



W x H Frame Rate Color
Sampling		 Max. Cable Length Max. Bit
Depth
Cat 5e/6 Cat 6a/7
1920 x 1080 < 30 fps 4:2:2 100 meters 100 meters 16-bit
> 30 fps 4:2:2 100 meters 100 meters 12-bit
4:2:2 70 meters 100 meters 16-bit
2048 x 1080 < 30 fps 4:2:2 100 meters 100 meters 16-bit
> 30 fps 4:2:2 100 meters 100 meters 12-bit
4:2:2 70 meters 100 meters 16-bit
3840 x 2160 < 30 fps 4:4:4 70 meters 100 meters 8-bit
> 30 fps 4:2:0 70 meters 100 meters 8-bit
4096 x 2160 < 30 fps 4:4:4 70 meters 100 meters 8-bit
> 30 fps 4:2:0 70 meters 100 meters 8-bit

VESA Displays

  • VESA Display Resolutions and Performance



W x H Frame Rate Color
Sampling		 Max. Cable Length Bits Per
Pixel
Cat 5e/6 Cat 6a/7
640 x 480 to 85 fps 4:4:4 100 meters 100 meters 24-bits
800 x 600 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1024 x 768 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1152 x 768 – 4:4:4 100 meters 100 meters 24-bits
1280 x 768 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1280 x 800 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1280 x 1024 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1360 x 768 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1366 x 768 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1400 x 1050 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1440 x 900 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1600 x 1200 to 75 fps 4:4:4 100 meters 100 meters 24-bits
85 to 120 fps 4:2:0 70 meters 100 meters 24-bits
1680 x 1050 to 85 fps 4:4:4 100 meters 100 meters 24-bits
120 fps 4:4:4 70 meters 100 meters 24-bits
1920 x 1200 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1920 x 1440 to 60 fps 4:4:4 70 meters 100 meters 24-bits
2560 x 1600 60_RB 4:4:4 70 meters 100 meters 24-bits

Audio Input

  • 8-channels (4 pairs) of embedded audio supported
  • Rates supported: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz

Audio Output

  • HDBaseT embedded audio

RS-232

  • 1 x 3.5mm TRS Input for RS-232/VISCA bidirectional signals

IR

  • 1 x 3.5mm TRS Input for IR Input
  • 1 x 3.5mm TRS Input for IR Output

Size (w x d x h)

  • 4.25” x 3.125” x 1.0” (108mm x 79.4mm x 25mm)

Weight

  • 0.4 lbs (0.2 kg)

Power

  • 5 to 20V DC regulated, 6 watts max., AJA external power supply model DWP-U-R1, 100-240V, 50/60 Hz universal input

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
SKU AJD-2039 Kategorien , , , , , , ,
