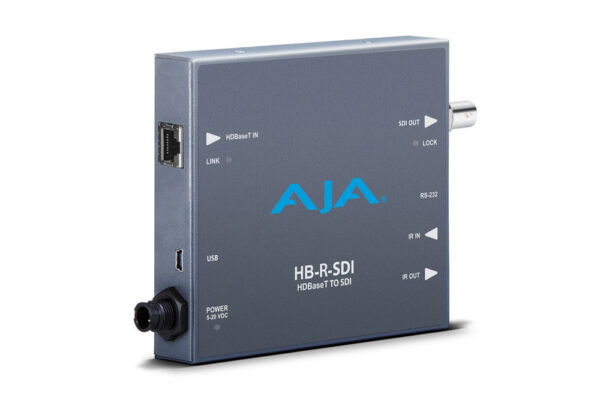

HDBaseT to SDI

Video Formats

  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1080p 23.98, 24, 25, 29.97, 50, 59.94, 60
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 720p 25, 29.97, 50, 59.94, 60
  • (SD) 625i
  • (SD) 525i



*PsF formats are converted to progressive outputs over the HDBaseT link

Video Input

  • HDBaseT (RJ-45)

Video Output

  • 3G-SDI

Video Displays

  • HDBaseT Cable Run Performance for 4K/UltraHD/HD
W x H Frame Rate Color
Sampling		 Max. Cable Length Max. Bit
Depth
Cat 5e/6 Cat 6a/7
1920 x 1080 < 30 fps 4:2:2 100 meters 100 meters 16-bit
> 30 fps 4:2:2 100 meters 100 meters 12-bit
4:2:2 70 meters 100 meters 16-bit
2048 x 1080 < 30 fps 4:2:2 100 meters 100 meters 16-bit
> 30 fps 4:2:2 100 meters 100 meters 12-bit
4:2:2 70 meters 100 meters 16-bit
3840 x 2160 < 30 fps 4:4:4 70 meters 100 meters 8-bit
> 30 fps 4:2:0 70 meters 100 meters 8-bit
4096 x 2160 < 30 fps 4:4:4 70 meters 100 meters 8-bit
> 30 fps 4:2:0 70 meters 100 meters 8-bit



Audio Output

  • 3G-SDI Embedded Audio
  • 8-Channels (4 pairs) of SDI embedded audio supported, select from 16-Channels (8 pairs)

RS-232

  • 1x 3.5mm TRS Input for RS-232/VISCA bidirectional signals

IR

  • 1x 3.5mm TRS Input for IR Input
  • 1x 3.5mm TRS Input for IR Output

Size (w x d x h)

  • 4.0” x 4.6” x 1.0” (101.6 x 116.84 x 25.4 mm)

Weight

  • 0.6 lbs (0.3 kg)

Power

  • 5 to 20V DC regulated, 9 watts max., AJA external power supply model DWP-U-R1, 100-240V, 50/60 Hz universal input

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
