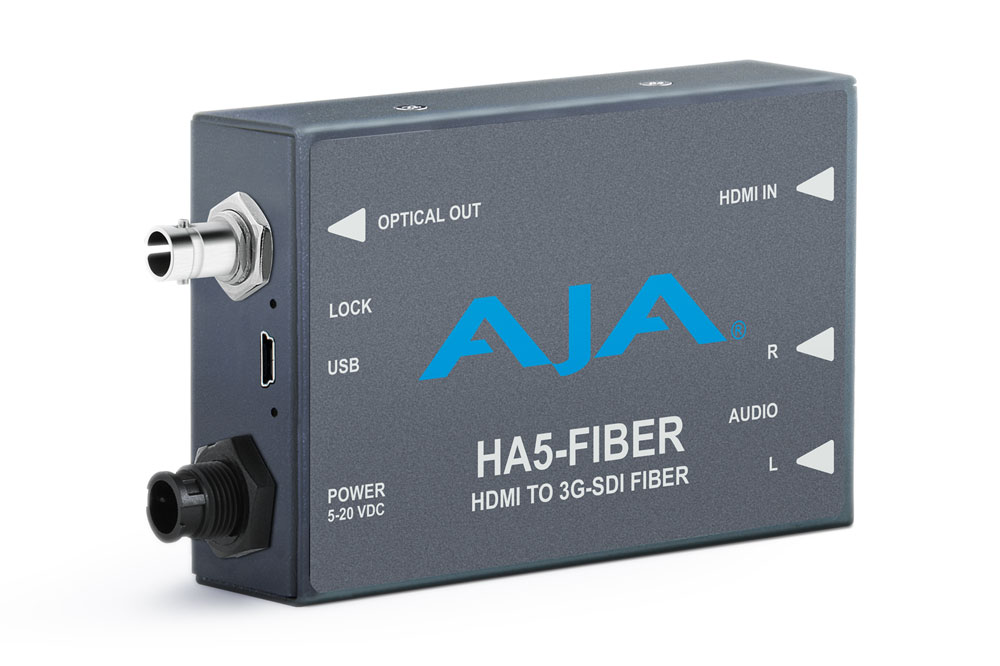

HA5 with ST Fiber Output, HDMI to 3G-SDI Protocol on Fiber
950,20 CHF
Vorbestellung, Lieferbar gem. Absprache
The HA5-Fiber converts a HDMI input to 3G-SDI over single mode 1310 nm fiber optic cable (ST-style fiber connector) for transporting HDMI sources over fiber. The small form factor enables this Mini-Converter to easily fit onto the back of a camera or neatly behind an equipment rack.
Embedded 8-Channel audio is supported in the fiber output allowing a convenient single cable audio/video connection up to 10km. The HA5-Fiber also provides 2-Channel RCA style audio inputs for a stereo audio input when needed.
• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1080i 50, 59.94, 60
• (HD) 720p 50, 59.94, 60
• (SD) 625i
• (SD) 625p
• (SD) 576p
• (SD) 525i
• (SD) 525p
• (SD) 480p
NOTE: HDCP content not supported
• (HD) 1080i 25, 29.97, 30
• (HD) 1080p 23.98, 24, 25, 29.97, 30
• (HD) 1080p 50, 59.94, 60 – SMPTE 425-1 Level A mapping structure 1 (1920 x 1080 4:2:2 10-bit YCbCr)
• (HD) 720p 50, 59.94, 60
• (SD) 625i 25
• (SD) 525i 29.97
• HDMI with embedded audio, up to 8-Channels
• Single mode optical fiber, ST connector supporting SMPTE-259/292/424 3G/HD/SD-SDI
• 2-Channel RCA style analog audio (-10dBu nominal)
• SDI embedded audio
• Wavelength: 1310nm
• Output Power: -2dBm typical
• 4.4” × 2.4” × 1.0” (112mm × 61mm × 25mm)
• 0.3 lb (0.2 kg)
• Uses AJA power supply model DWP-U-R1, included with purchase
• 100-240V, 50/60 Hz universal input
• 5V DC regulated, 4.5 watts
• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
