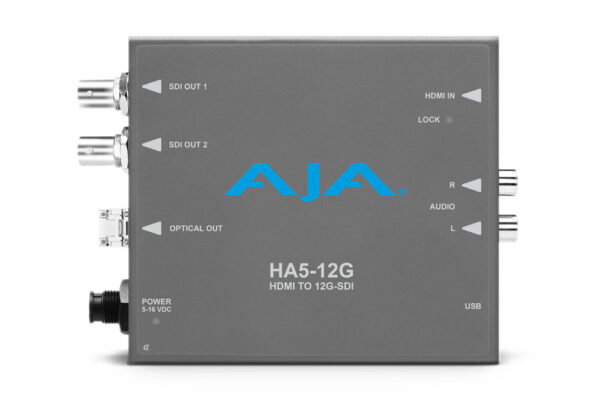

HDMI 2.0 to 12G-SDI Conversion with Single Fiber Transmitter

Ursprünglicher Preis war: 1.345,85 CHFAktueller Preis ist: 942,09 CHF.

Ab Lager, lieferbar in 1 – 2 Arbeitstagen (Noch 2 Stück verfügbar)

HA5-12G-T Features:

  • Convert HDMI 2.0b up to 4K 60p to 12G-SDI with a second mirrored output
  • Includes a single channel Fiber 12G LC transmitter, which extends 12G-SDI signals over long distances (10 km Single Mode)
  • HA5-12G-T ships with FiberLC-1T-12G  SFP installed
  • Support for up to 60p input at 4:4:4/4:2:2/4:2:0
  • HDMI EDID Emulation
  • Two Sample Interleave (2SI) 4K/UHD source mapping
  • Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
  • HDR Infoframe decoder as defined in CTA-861-G and HDMI v2.0b
  • Embedded audio can be selected from the HDMI or Analog audio inputs
  • The Lock LED adjacent to the HDMI input connector indicates by color the detected signal type. Off is no signal, Green is SD-SDI, Red is HD-SDI, Amber is 3G-SDI, Purple is 6G-SDI, and Blue is 12G-SDI
  • Configure via USB port and supplied Mini-Config software
  • Uses 5-16 VDC power (DWP-U-R1 universal power supply included)
  • USB port used with Mini-Config software application to configure the device via PC/Mac
  • Covered by five year warranty and AJA’s advanced replacement policy





Video Formats

  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60
  • (SD) 720 x 576p 50
  • (SD) 720 x 576i 50
  • (SD) 720 x 480p 59.94
  • (SD) 720 x 480i 59.94
  • RGB and YCbCr, 4:4:4/4:2:2, 8, 10, 12-bit



Note: Raster and frame rate dependent, please see HA5-12G Video Formats in Documents and Manual.

Video Input Digital

  • 1x HDMI Type A connector*, HDMI v2.0b

Video Output Formats

  • 1x 12 Gb SDI
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1x 6 Gb SDI
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
  • 1x 3 Gb SDI (Level A or B-Dual Link)
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920 x 1080i 50, 59.94, 60
    • (HD) 1280 x 720p* 50, 59.94, 60
  • 1x 1.5 Gb SDI
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920 x 1080i 50, 59.94, 60
    • (HD) 1280 x 720p 50, 59.94, 60
  • 1x 270 Mb SDI
    • (SD) 625i 50
    • (SD) 525i 59.94
  • RGB and YCbCr, 4:4:4/4:2:2/, 8, 10, 12-bit



*1280 x 720p is Level A Only
Note: Raster and Frame Rate Dependent, please see HA5-12G Video Formats in Documents and Manual.

Video Output Digital

  • 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
    • Single Link SD/HD/2K/UltraHD/4K

Fiber Output
(HA5-12G-T)

  •  1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
    • Optical Power: -5 dBm (min), 0.5 dBm (max)
    • Extinction Ratio: 5.4 dB (min)

Fiber Output
(HA5-12G-T-ST)

  • 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Tx 1260 nm (min), 1360 nm (typ), 1360 nm (max)
    • Optical Power: -5 dBm (min), 2 dBm (max)
    • Extinction Ratio: 3.4 dB (min)

Cable Equalization

(Belden 1694A coax)

  • 12 Gbps, 65m
  • 6 Gbps, 125m
  • 3 Gbps, 190m
  • 1.5 Gbps, 200m
  • 270 Mbps, 405m

Audio Input Digital

  • HDMI embedded audio, 24-bit, 8-channel

Audio Input Analog

  • 2x RCA style connector, 2-channel -10dBu (nominal)

Audio Output Digital

  • SDI embedded audio, 24-bit, 8-channel

User Interface

  • USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows

Size (w x d x h)

  • 4.6″ x 4.02″ x 0.9″ (116.84 x 102.11 x 22.86 mm)

Weight

  • 0.5 lb (0.3 kg)

Power

  • 5-16VDC regulated, 11 watts, power supply required included with purchase
  • AC Adapter: 100-240VAC, 50/60 Hz, universal input

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)



*HA5-12G, HA5-12G-T, and HA5-12G-T-ST each use approximately 12 watts of power and convection cooling. It will be warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the HA5-12G converters with other Mini-Converters.
