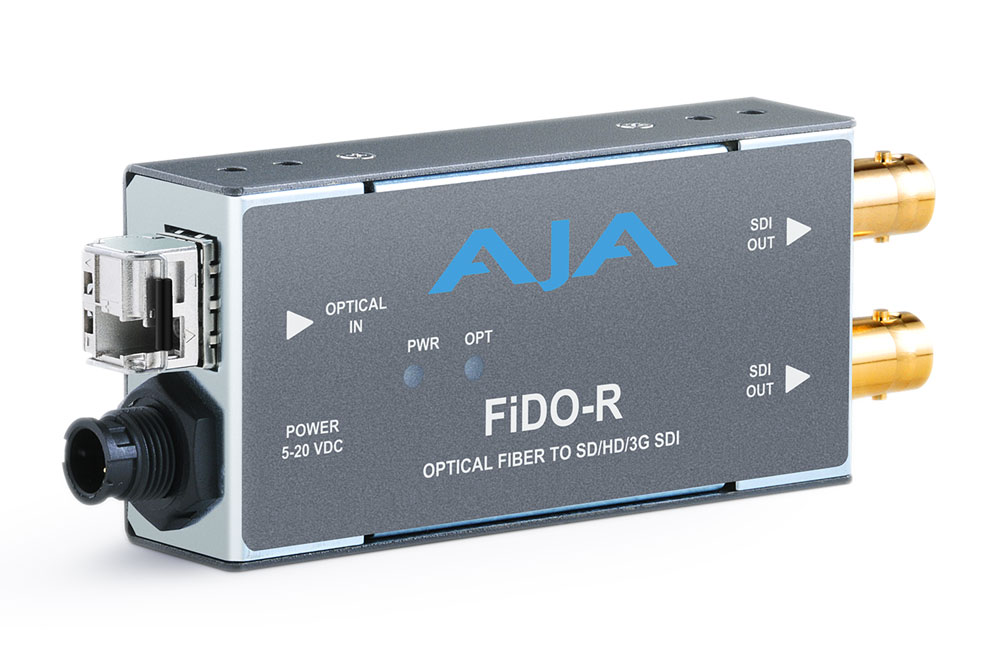

FiDO-R-MM

1-Channel Multi-Mode LC Fiber to 3G-SDI Receiver

939,39 CHF

Vorbestellung, Lieferbar gem. Absprache

Overview

FiDO-R-MM offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion, allowing for cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode* fiber optic cables – useful for eliminating ground loop problems.

FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.



Features

  • 1-Channel Multi-Mode LC Fiber to 3G-SDI Receiver
  • Simplex connection (LC connector)
  • 3G/HD/SD-SDI output
  • Dual, matching SDI outputs
  • Uses 5-20VDC power (DWP-U-R1 universal power supply included)
  • Five year warranty



Video Formats

  • 150 Mbps – 3 Gbps, format agnostic

Video Input Digital

  • 1-channel Multi-Mode LC Fiber Input, SMPTE-297
  • Nominal Wavelength: 850 nm
  • Optical Sensitivity: -15dBm (min)
  • Overload: 0dBm

Video Output Digital

  • 1-channel Dual matching 3G-SDI BNC Outputs, SMPTE-259/292/424

Reclocking

  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select
  • All other rates are passed through and not reclocked

Size (w x d x h)

  • 4.6″ x 1.71 “ x.85″ (117 x 43.5 x 21.6mm)

Weight

  • 0.5 lb (0.3 kg)

Power

  • 2 watts max
  • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
