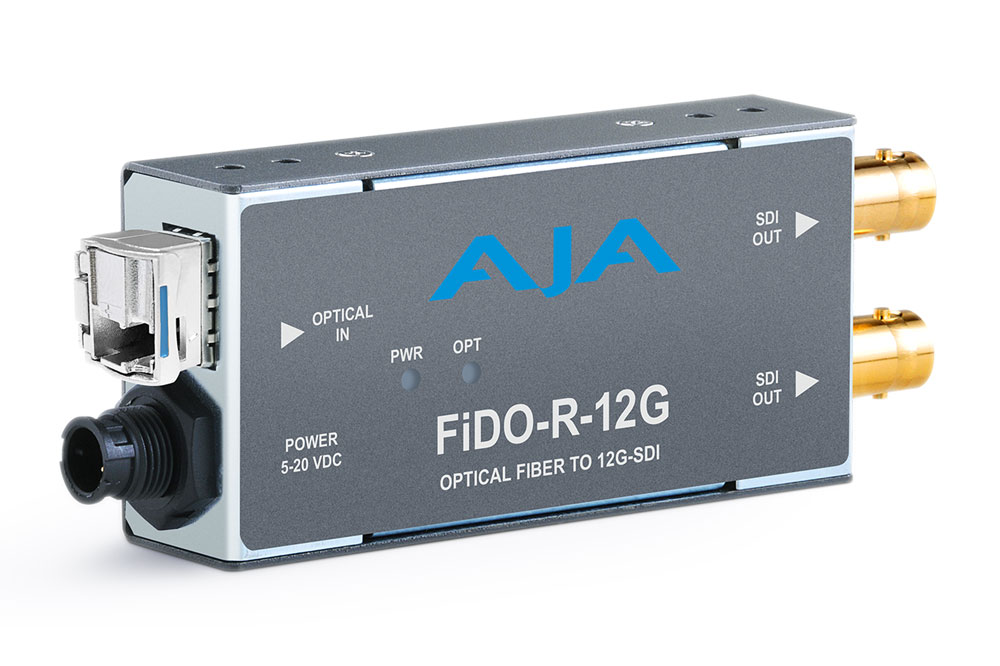

FiDO-R-12G

FiDO-R-12G

1-Channel Single Mode LC Fiber to 12G-SDI Receiver

1.069,11 CHF

Vorbestellung, Lieferbar gem. Absprache

Overview

FiDO-R-12G offers unmatched flexibility and cost efficiency for 12G/3G/HD/SD-SDI Fiber conversion, allowing for cable runs up to 10 km (32,808 ft) over standard single-mode fiber optic cable.

FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Features:

  • 1-Channel Single-Mode LC Fiber to 12G-SDI Receiver
  • Simplex connection (LC connector)
  • 12G-SDI output, which also supports 6G/3G/HD/SD-SDI
  • Second SDI output (DA: same signal)
  • Dual, matching SDI outputs
  • Uses 5-20VDC power (DWP-U-R1 universal power supply included)
  • Five year warranty



Video Formats

  • 270 Mbps – 12 Gbps, format agnostic

Video Input Digital

  • 1-Channel Independent Single Mode LC Fiber connector, SMPTE 297/259/292/424/2081/2082
  • Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
  • Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
  • Overload Power: -2 dBm (min)

Video Output Digital

  • 1-Channel Dual matching 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082

Reclocking

  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps – Auto Select
  • All other rates are passed through and not reclocked

Size (w x d x h)

  • 4.6″ x 1.71 “ x.85″ (117 x 43.5 x 21.6mm)

Weight

  • 0.4 lb (0.2 kg)

Power

  • 2 watts (max)
  • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
SKU AJ-4043 Kategorien , , , , , , , ,
