Features

• Supports all SDI video formats
• Supports ASI/DVB and SMPTE 310 streams
• Dual channel 1>4 or flexible 1>8 mapping
• Reclocking or non-reclocking mode (selectable)
• Auto-detect input video standard
• Transparently pass data between 15Mbit/s and 3Gbit/s in non re-clocked mode
• Microprocessor controlled with internal flash ram for storing configuration
• Input presence detection with LED indication
• Optional power fail relay connecting input to output
• Remote control, status monitoring and error reporting when used with LYNX control system
• Full SNMP support when used with master controller option
• Hot Swappable

Description

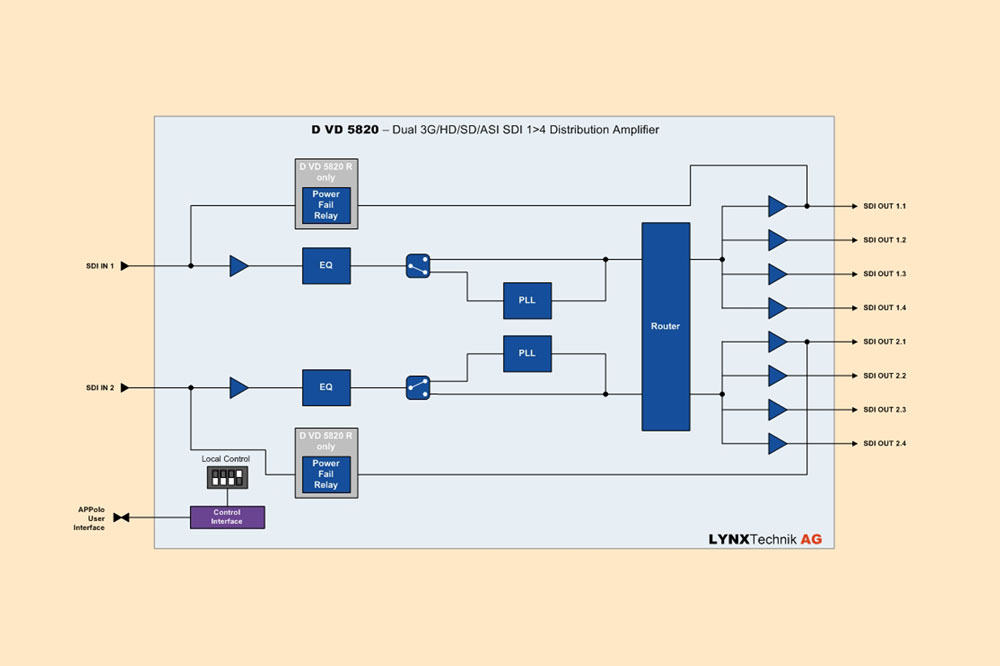

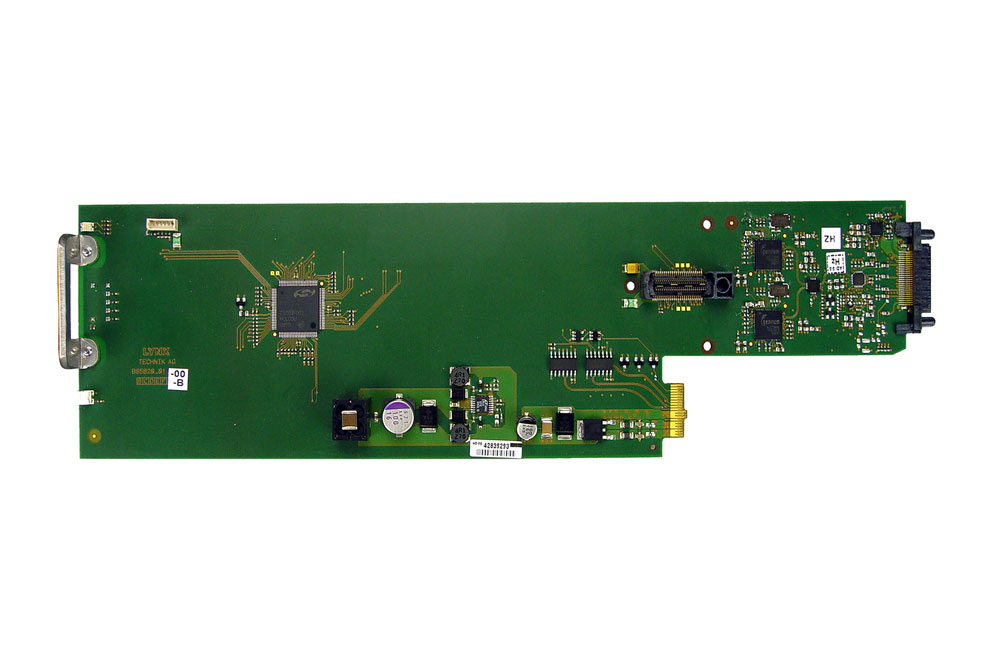

The DVD 5820 can be configured as a single channel 1>8 or dual channel 1>4 SDI distribution amplifier. Each channel can be set to reclocking or non-reclocking mode. This module is ideally suited for demanding digital multi-format broadcast and professional applications.

The module auto-detects the input video standard with support for all SDI video formats up to 3Gbit/s. In non re-clocked mode the module will transparently pass any data between 15Mbit/s and 3Gbit/s. Support for ASI/DVB and SMPTE 310 signals is also provided.

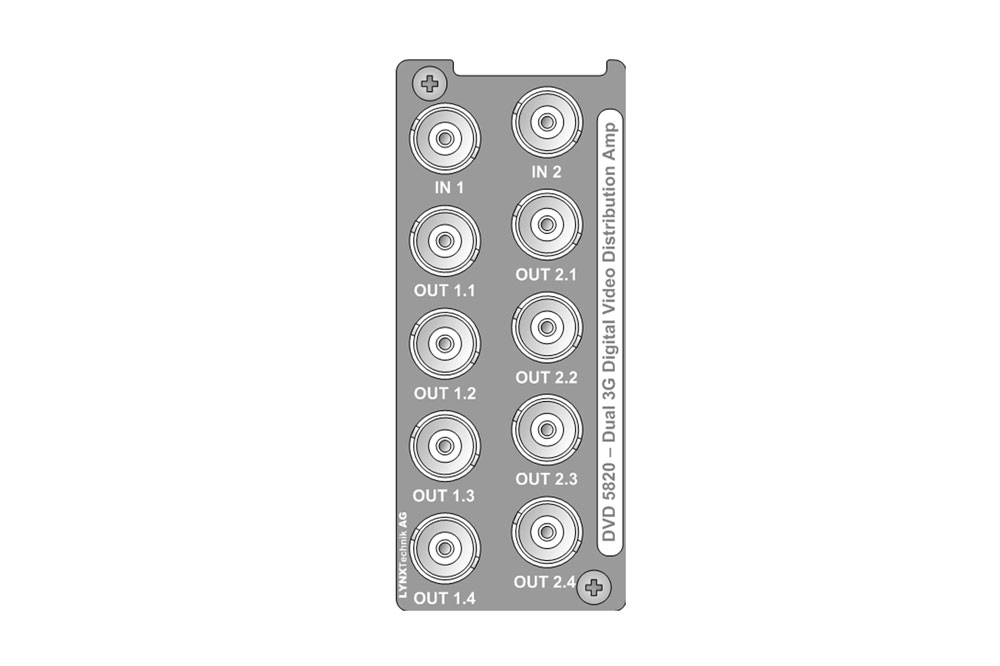

In 1>8 mode either input can be mapped to the 2 banks of 4 outputs. The optional mechanical relay will connect the inputs to one of the outputs in the event of a power failure.

Local settings are provided via an integrated dip switch on the card edge. Remote control, status monitoring and error reporting is possible when using the LYNX control system.
