Features

• 1 input and 7 outputs
• Suitable for SDI video up to 12Gbit/s (4K/UHD)
• Supports SD SDI, HD SDI, 3G SDI, 6G SDI and 12G SDI
• Reclocking
• Auto-detect input format
• Input present LED indication

Description

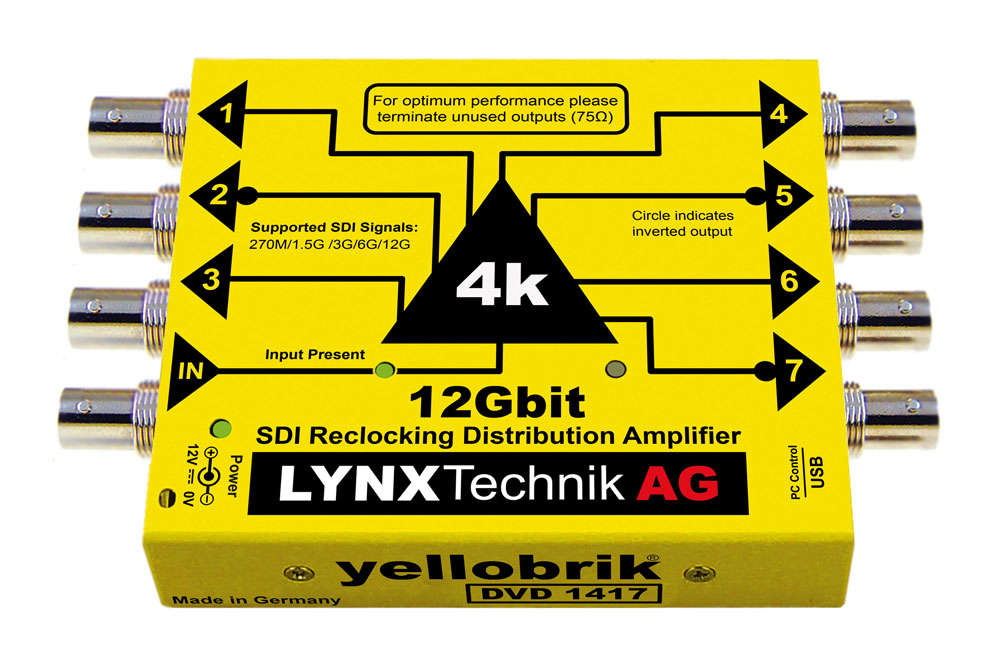

The DVD 1417 is a compact SDI distribution amplifier, which is suitable for all SMPTE standard SDI signals from 270Mbit/s through 4K UHD (12 Gbit/s). The SDI input format is auto-detected and all outputs are reclocked.

SMPTE 259M (270Mbit/s), SMPTE 292M (1.5Gbit/s), SMPTE 424M (3Gbit/s), SMPTE 2081 (6GBit/S) and SMPTE 2082 (12GBit/s) standards are supported.
