• 2-Channel 1×8 mono or 2-Channel 1×4 Stereo Distribution Modes
• Balanced Analog Audio I/O
• Input presence detection
• Independently adjustable gain for each input channel

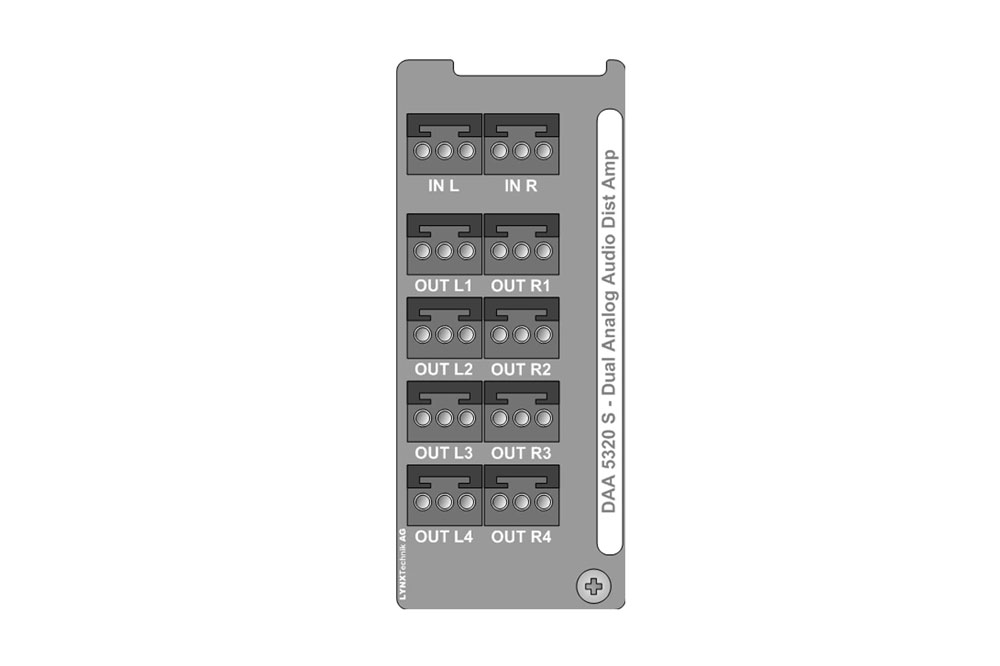

• Two backplane options: Screw terminal (Weco) or D-Sub
• Remote control, status monitoring and error reporting possible when used with LYNX control system
• Full SNMP support when used with RCT 5023 controller
• Hot Swappable

Description

Featuring dual mode operation the DAA 5320 is a flexible and cost effective solution for high quality analog audio distribution. The DAA 5320 can be used as a single 1×8 or a dual channel 2×4 distribution amplifier. Balanced audio inputs and outputs ensure high quality low noise performance ideal for demanding broadcast and professional audio applications.

Digitally adjustable analog gain adjustments are provided for system calibration with input presence detection on each channel. Two back plate configurations are available for system connectivity.

Local control capability is provided via the integrated dip switch and multifunction switch. The DAA 5320 is fully compatible with Lynx Centraal for remote control, status monitoring and error reporting.
