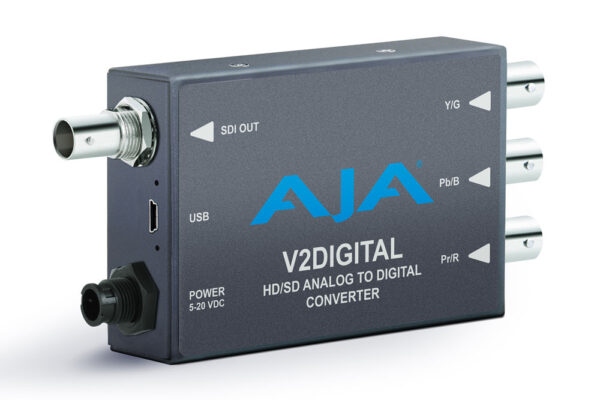

V2DIGITAL, Demo

Analog video to digital, HD/SD-SDI Mini-Converter

Ursprünglicher Preis war: 474,56 CHFAktueller Preis ist: 355,92 CHF.

Ab Lager, lieferbar in 1 – 2 Arbeitstagen (Noch 1 Stück verfügbar)

Overview

V2Digital is a high-quality, cost-effective analog to digital video converter that’s perfect for facilities needing to integrate signal types. V2Digital provides AJA’s high-quality 10-bit conversion of component or composite analog video to SDI at either SD or HD resolutions utilizing a full 10-bit data path and 2x oversampling to ensure a quality conversion all at an extraordinary price. V2Digital accepts YPbPr (SMPTE, EBU-N10), Betacam, or RGB component inputs or NTSC/PAL or Y/C (S-Video) composite inputs with a 4-line Adaptive Comb Filter providing high-quality decoding of composite sources. Configuration can be set by on unit DIP switches or remotely via AJA MiniConfig software control over USB.

Note: V2Digital does NOT up-convert or down-convert between SD and HD resolutions. Only analog to digital signal conversion is supported.

Extensive format support

V2Digital accepts YPbPr (SMPTE, EBU-N10), Betacam, or RGB component inputs or NTSC/PAL or Y/C (S-Video) composite inputs so no matter what signal comes your way, you’ll be ready to work with it.





Video Formats

  • (HD) 1080i 50, 59.94, 60
  • (HD) 1080PsF 23.98, 24, 25
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i
  • (SD) 525i

Video Inputs

  • HD component YPbPr, RGB (SMPTE-274), 1x BNC
  • SD component (Betacam, EBU-N10)/composite/YC(S-Video), 1x BNC

Video Output

  • HD/SD-SDI, SMPTE-259/292/296M, 1 x BNC

User Controls

  • External Dipswitch
  • Control (Local/Remote)
  • Component/Composite (SD Only)
  • Format (YPbPr/YC or RGB)
  • Pedestal Present (on/off) (SD Only)

Size (w x d x h)

  • 5.1” × 2.4” × 1.0” (129.54 × 60.96 × 25.4 mm)

Power

  • 5-20 VDC, 3 watts

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
