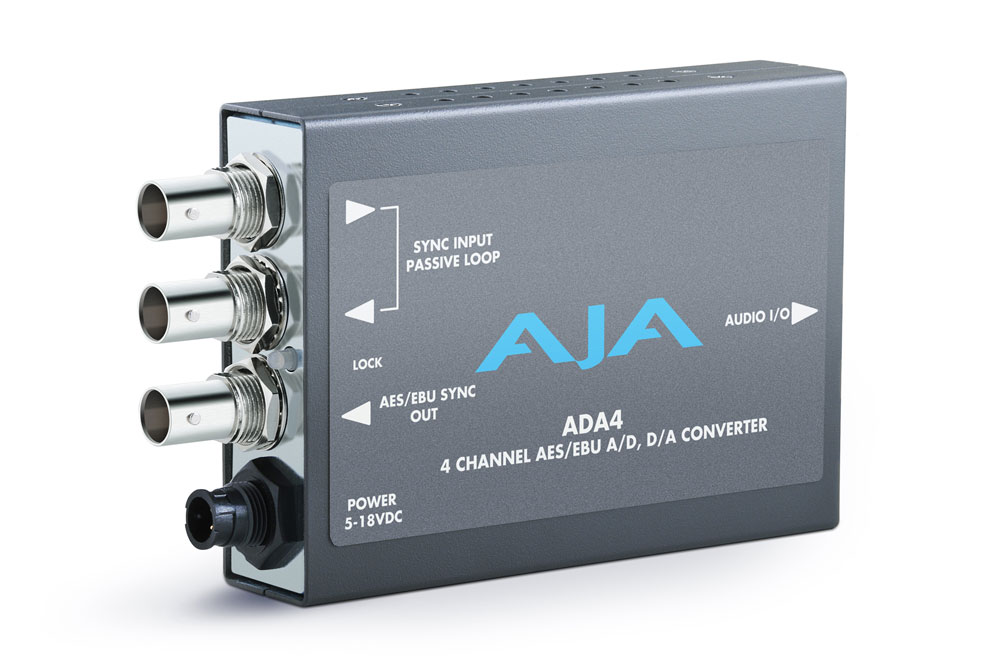

ADA4

ADA4

Audio A/D and D/A Converter, 4-Channel Bidirectional, Balanced XLR

632,39 CHF

Vorbestellung, Lieferbar gem. Absprache

Overview

The ADA4 is a 4-channel converter that can be configured as a 4-channel A/D, a 4-channel D/A, 2-channel A/D and 2-channel D/A, or an AES synchronizer.



Features

  • Simultaneous A/D and D/A, or AES Synchronizer
  • Full-time AES11 low jitter reference output
  • Up to 4 channels of balanced analog to AES/EBU audio
  • Up to 4 channels of AES/EBU to balanced analog audio
  • Supplied XLR breakout cable
  • AES11/Wordclock/Tri-level Sync/Color Black Reference Loop
  • Adjustable audio levels
  • Sample Rate Conversion between 96 kHz and 48 kHz
  • Dipswitch configuration 5-18VDC Power



Audio I/O Analog

  • Balanced, XLR, one channel per XLR connector

Audio I/O AES

  • Balanced 110 ohm, XLR, two channels per XLR connector

Audio Levels Analog
(with Respect to Full Scale Digital)

  • 24dBu (SMPTE RP155), 18dBu (EBU R68), 15dBu (Germany), 10dBV (consumer 12.2 dBu)

Audio Converters

  • 24-bit, 48/96 KHz

User Controls

External Dipswitch:

  • Channel 1/2: A/D, D/A
  • Channel 3/4: A/D, D/A
  • Audio Level 1
  • Audio Level 2

Reference Loop

  • 75 Ohm, unterminated, HD/SD Sync, AES-11, or Wordclock (48/96 KHz)

Size (w x d x h)

  • 5.8″ x 3.1″ x 1.0″ (147mm x 79mm x 25mm)

Power

  • 5-18VDC, 3 watts. power supply required, included with purchase

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
SKU AJ-1953 Kategorien , , , , , ,
