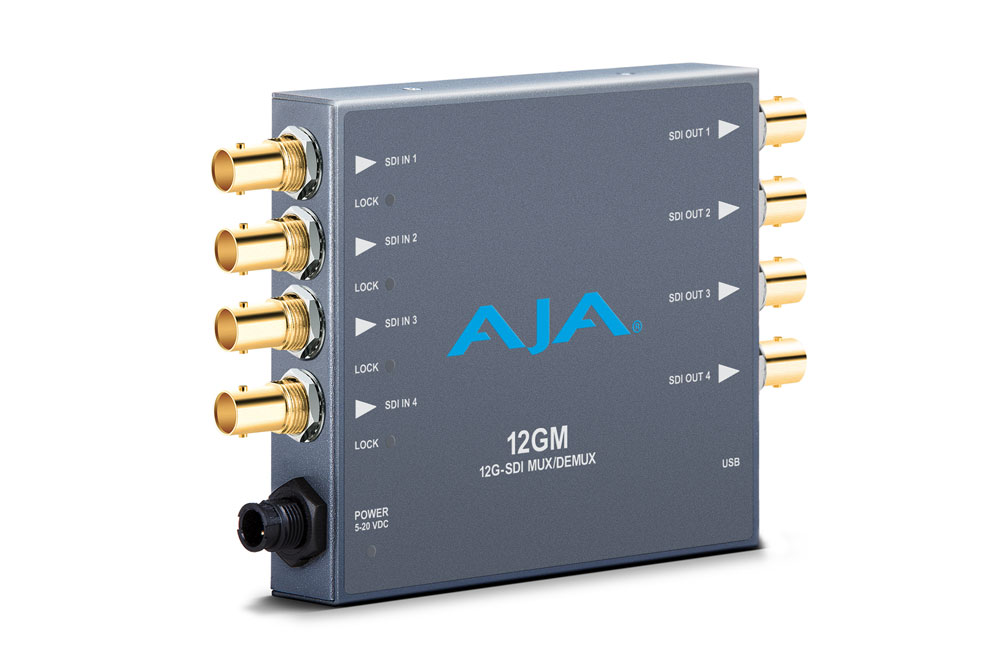

• (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2048x1080p 50, 59.94, 60
• (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920x1080i 50, 59.94, 60
• (HD) 1280x720p 50, 59.94, 60
• (SD) 625i 50
• (SD) 525i 59.94
• RGB and YCbCr, 4:4:4/4:2:2, 8, 10, 12-bit

Note: Raster and Frame Rate Dependent, please see 12GM Video Formats in Documents and Manual.

• 4x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
  • Single Link 12G/6G/3G/1.5G-SDI
  • Quad Link 3G-SDI Level A or B-DL (4x 3G), SMPTE-425-5
  • Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425
  • Quad Link HD-SDI (4x 1.5G)
  • Dual Link HD-SDI (2x 1.5G), SMPTE-372
  • Single Link 4K/UltraHD/HD/SD

• 4x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
  • Single Link 12G/6G/3G/1.5G-SDI
  • Quad Link 3G-SDI Level A or B-DL (4x 3G), SMPTE-425-5
  • Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425
  • Quad Link HD-SDI (4x 1.5G)
  • Dual Link HD-SDI (2x 1.5G), SMPTE-372

• Quad 3G-SDI Level A to Single 12G-SDI
• Quad 3G-SDI Level B-DL to Single 12G-SDI
• Single 12G-SDI to Quad 3G-SDI Level A
• Single 12G-SDI to Quad 3G-SDI Level B-DL
• Quad 1.5G-SDI to Single 6G-SDI
• Single 6G-SDI to Quad 1.5G-SDI
• Quad 3G-SDI Level A to Quad 3G-SDI Level B-DL
• Quad 3G-SDI Level B-DL to Quad 3G-SDI Level A
• Two Sample Interleave (2SI) to Square Division (Quadrant) pixel mapping
• Square Division (Quadrant) to Two Sample Interleave (2SI) pixel mapping
• Pass through of Single Link 12G, 3G, 1.5G and 270M SDI video
• Distribution Amplifier support (1×4)
• Input signal diagnostics
• Input timing analyzer for quad link signals

(Belden 1694A coax)

• 12 Gbps, 70m
• 6 Gbps, 100m
• 3 Gbps, 140m
• 1.5 Gbps, 200m
• 270 Mbps, 300m

• Passes SDI embedded audio, 24-bit, up to 16-channels

• USB port used with supplied cable and Mini-Config software application to configure device and access diagnostics via macOS or Windows.

• 5.76″ x 4.02″ x 0.90″ (146.31 × 102.11 × 22.86 mm)

• 0.6 lb (0.3 kg)

• 5-16 VDC regulated, 12 watts, power supply required, included with purchase
• AC Adapter: 100-240VAC, 50/60 Hz, universal input

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)*
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

*12GM uses approximately 12 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the 12GM with other Mini-Converters.
