New AJA Kona X

New AJA Kona X

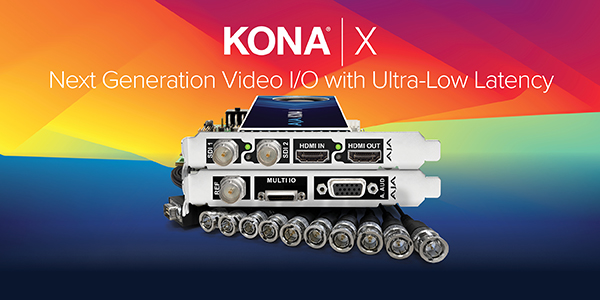

Designed from the ground up to support next-generation AI and AR workflows, KONA X is a 4-lane, PCIe 3.0 video I/O card with two full-size, bidirectional 12G-SDI BNC connections and two full-size HDMI 2.0 connections, one for input and one for output. KONA X lets users achieve as low as sub-frame latencies with Streaming DMA (Direct Memory Access), which enables powerful real time workflows with no perceptible delay on I/O and processing crucial for implementations such as live sports and virtual production. The optional KONA Xpand card increases KONA X’s already impressive connectivity.



Features

  • 4K/UltraHD/2K/HD/SD up to 50/60p
  • 2x bidirectional 12G-SDI with up to 16-channels of embedded audio
  • HDMI 2.0 input and output with up to 8-channels of embedded audio
  • RGB 4:4:4 12-bit (4K/UltraHD) workflows supported
  • YCbCr 4:2:2 10-bit and HFR workflows supported
  • VESA HDMI I/O compatibility – the video subsystem timing is agnostic, enabling capture and playback of a myriad of HDMI formats
  • Support for Apple Final Cut Pro, Adobe Premiere Pro and Avid Media Composer and much more
  • Support for OEM applications with the AJA Developer SDK and In-Firmware Microcontroller
  • 4K Closed Caption Support
  • VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
  • PQ, HLG, HDR10, HDR10+ and Dolby Vision Support
  • HDR Metadata Capture and Auto Playback Detection
  • Includes support for the latest Apple silicon
  • Optional KONA Xpand board provides Bi-level / Tri-level Video Reference (BNC), LTC in/out, RS-422, 8-channels of AES/EBU audio (with included breakout cable) and 2-channels of analog audio in and out (via user supplied DB-15 to XLR cable)
  • Three year warranty
